Legacy Outback Limited AWD F4-2.5L DOHC (1998)

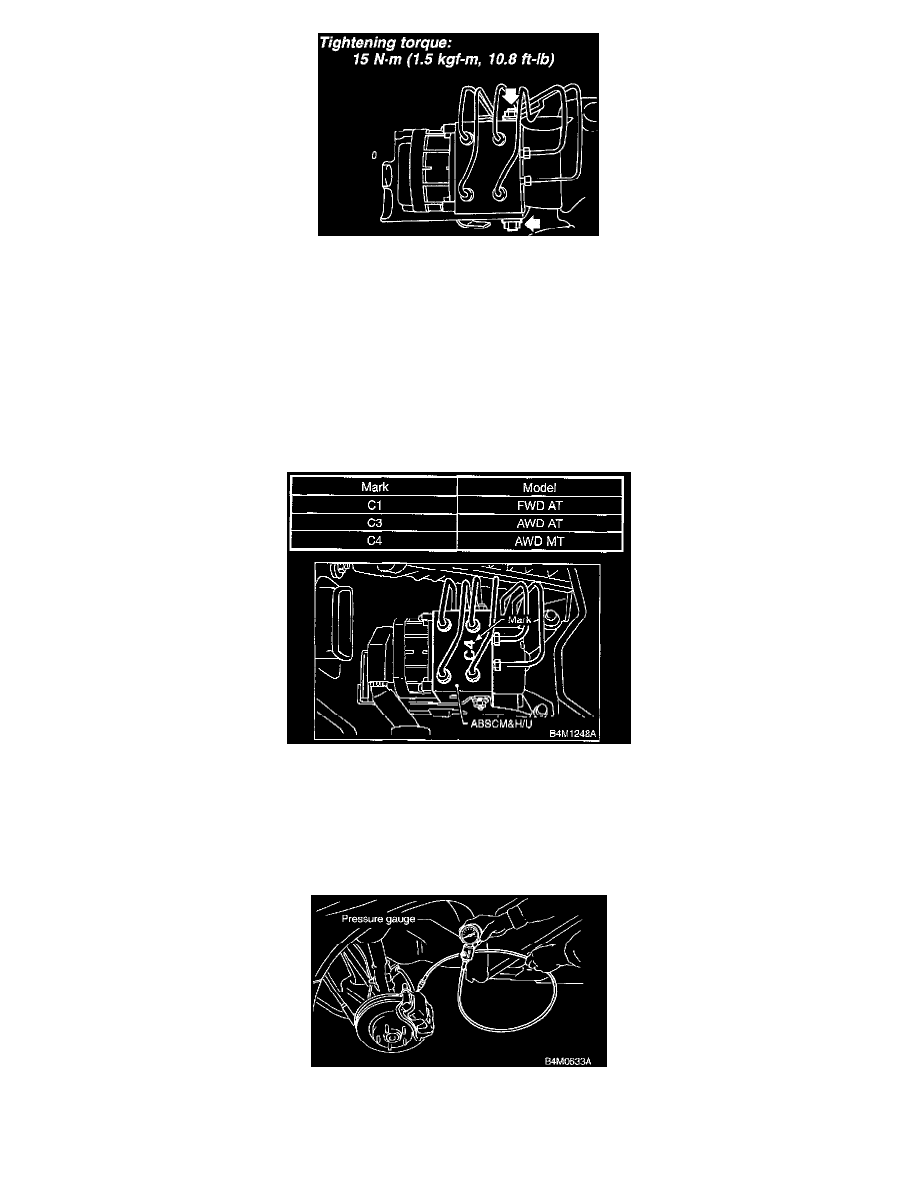

8. Remove ABSCM&H/U from engine compartment.
CAUTION:
-
ABSCM&H/U cannot be disassembled. Do not attempt to loosen bolts and nuts.
-
Do not drop or bump ABSCM&H/U.
-
Do not turn the ABSCM&H/U upside down or place it on its side.
-
Be careful to prevent foreign particles from getting into ABSCM&H/U.
-
Apply a coat of rust-preventive wax (Nippeco LT or GB) to bracket attaching bolt after tightening.
-
Do not pull harness disconnecting harness connector.
B: INSPECTION
1. Check connected and fixed condition of connector.
2. Check specifications of the mark with ABSCM & H/U.
C: CHECKING THE HYDRAULIC UNIT ABS OPERATION
1. Checking the Hydraulic Unit ABS Operation By Pressure Gauge
1. Lift-up vehicle and remove wheels.
2. Disconnect the air bleeder screws from the FL and FR caliper bodies.
3. Connect two pressure gauges to the FL and FR caliper bodies.
CAUTION:
