Legacy Outback Limited AWD F4-2.5L DOHC (1998)
Engine, Cooling and Exhaust
Cooling System
Radiator Cooling Fan / Radiator Cooling Fan Motor / Diagrams / Diagram Information and Instructions
Page 1520
Page 2

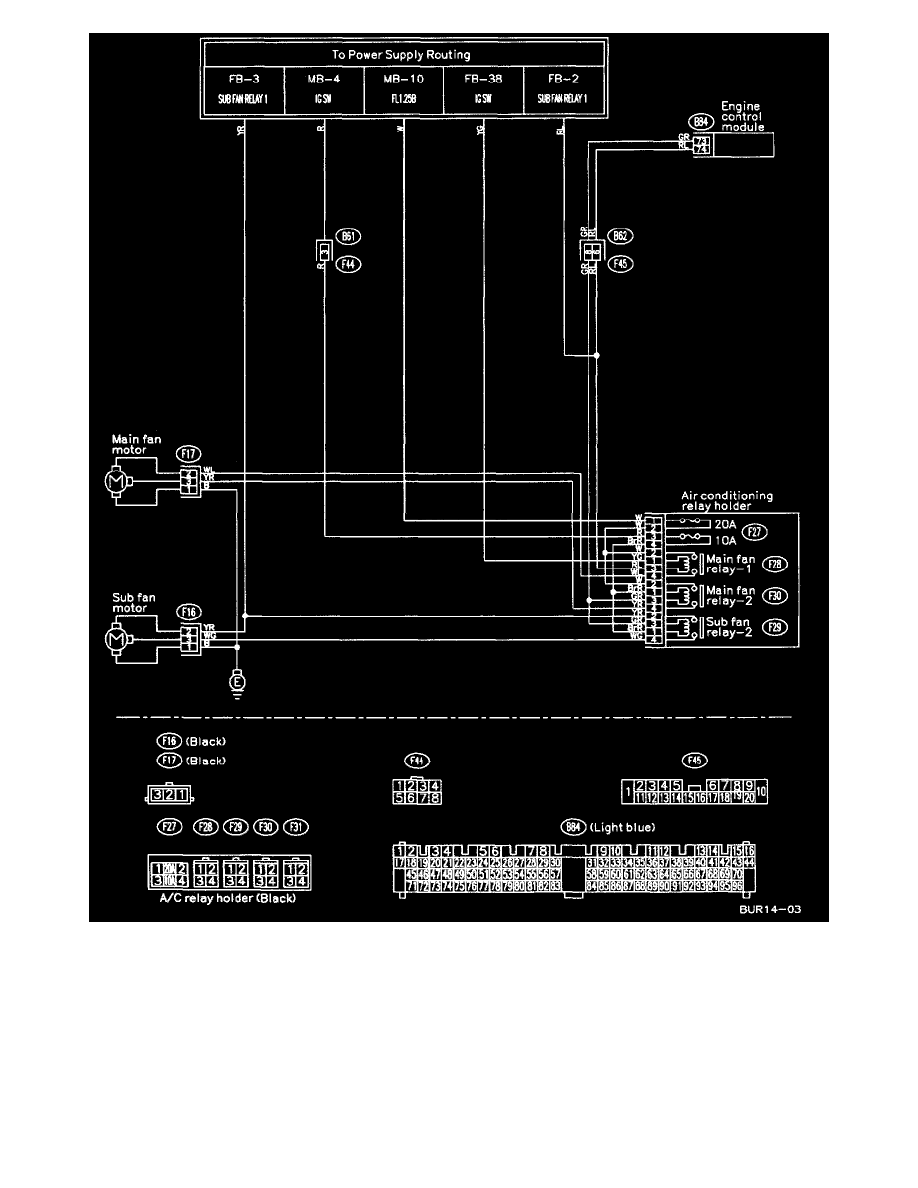

Radiator Fan System (RHD Model) Circuit
Engine, Cooling and Exhaust
Cooling System
Radiator Cooling Fan / Radiator Cooling Fan Motor / Diagrams / Diagram Information and Instructions
Page 1520
