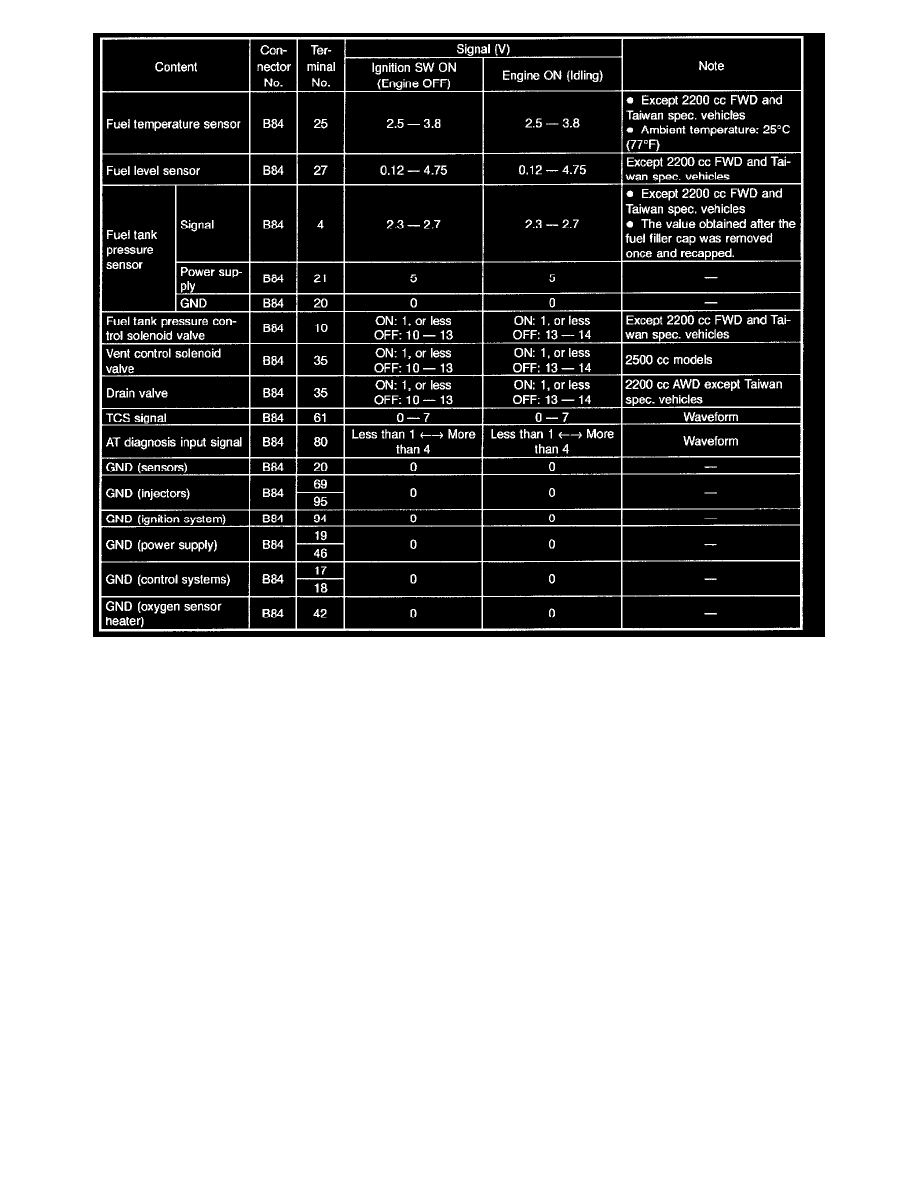

ENGINE CONTROL MODULE (ECM) I/O SIGNAL

Powertrain Management
Computers and Control Systems
Engine Control Module / Component Information
Diagrams
Page 2092
