Legacy Outback Limited AWD F4-2.5L DOHC (1998)

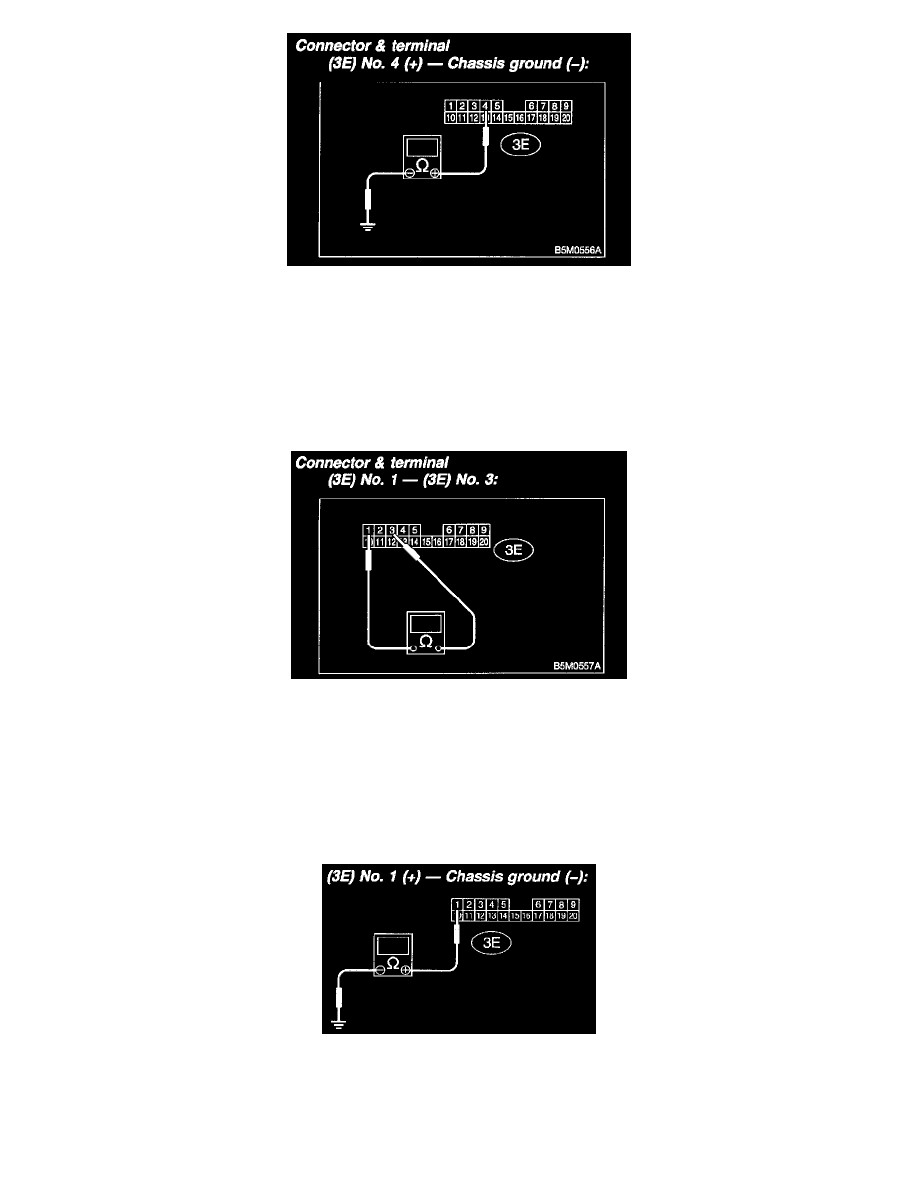

Measure resistance across test harness E connector (3E) terminal and chassis ground.
CHECK: Is the resistance more than 10 K Ohms?
YES:
Go to step 5B4.
NO:
Go to step 5B4.
5B4: FRONT SUB SENSOR (LH) AND FRONT SUB SENSOR HARNESS (LH) INSPECTION
Measure resistance between test harness E connector (3E) terminal.
CHECK: Is the resistance between 750 Ohms and 1 K Ohm?
YES:
Go to step 5B5.
NO:
Go to step 5B5.
5B5: FRONT SUB SENSOR (LH) AND FRONT SUB SENSOR HARNESS (LH) INSPECTION
Measure resistance across test harness E connector (3E) terminal and chassis ground.
CHECK: Is the resistance more than 10 K Ohms?
YES:
Go to step 5B6.
