Seats: Specifications
Torque Specifications

Sedan

Torque Specifications

Front Seat Adjuster Bolt ........................................................................................................................................................ 35 Nm (3.5 kgf-m/25.5 ft. lbs.)

NOTE:

The specified tightening torque is also described in the following.

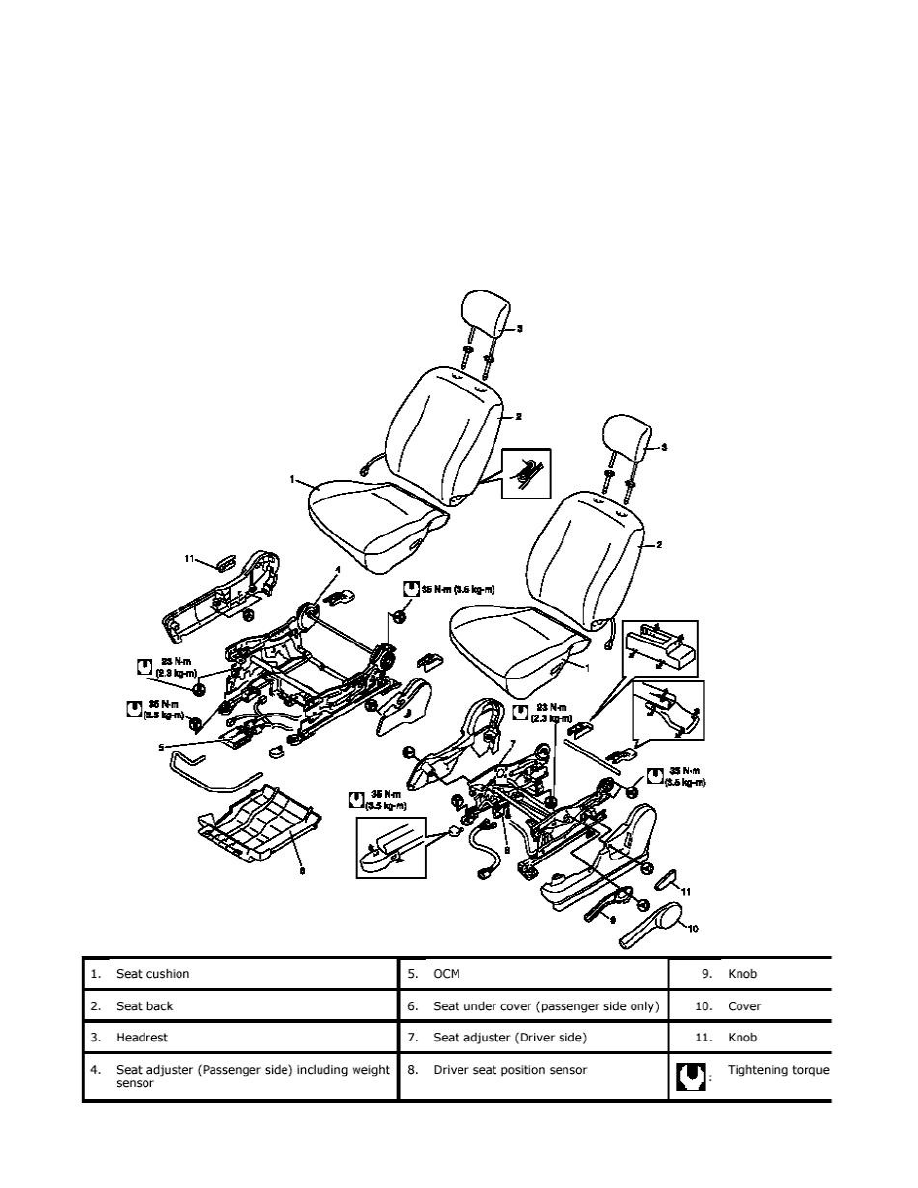

Front Seat Components
