Verona L6-2.5L (2005)
Drive Belt: Service and Repair

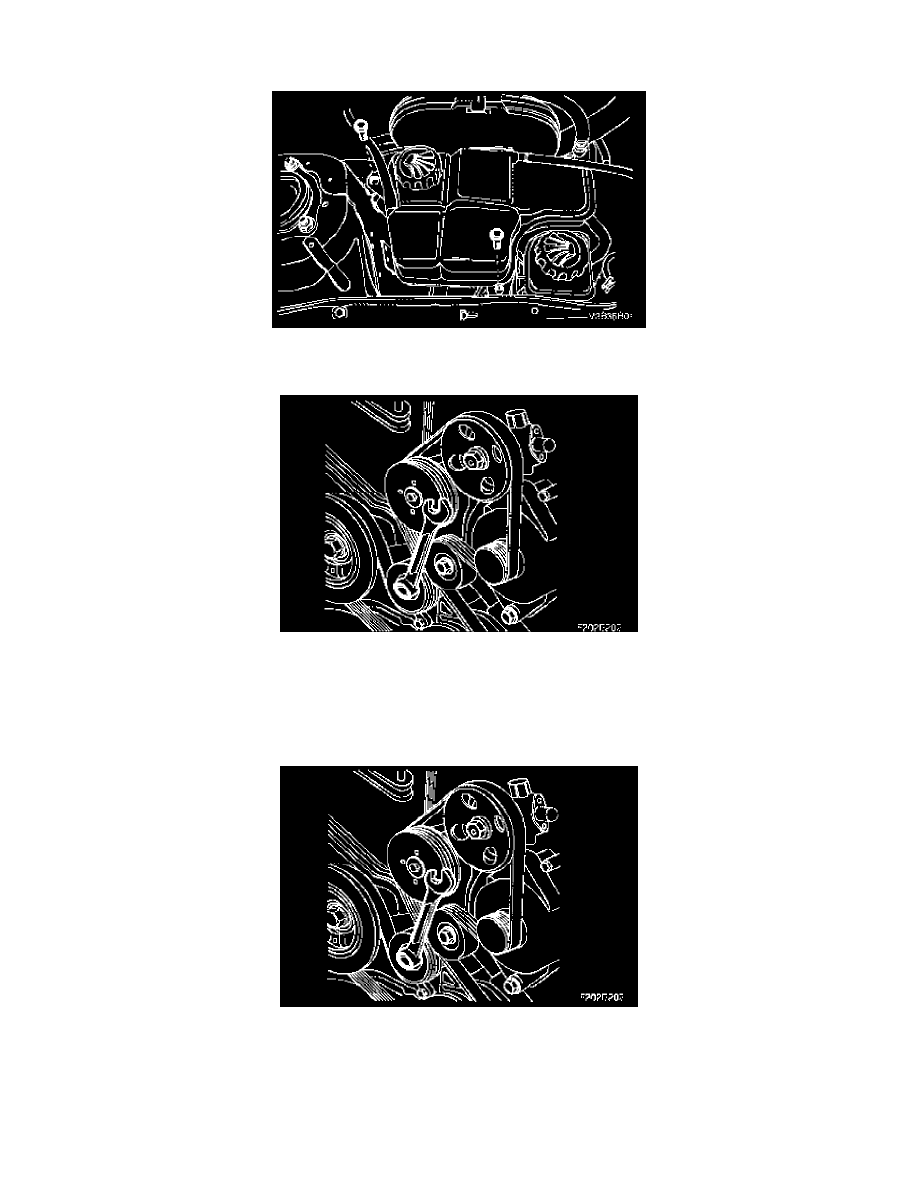

Serpentine Accessory Drive Belt Removal
1. Remove the coolant reservoir tank.
2. Use a wrench to turn the tensioner bolt clockwise, compressing the tensioner, and releasing the tension on the serpentine accessory drive belt.
3. Remove the serpentine accessory drive belt.
Serpentine Accessory Drive Belt Installation
1. Use a wrench to turn the tensioner bolt clockwise, compressing the tensioner, and releasing the tension on the serpentine accessory drive belt.
2. With the wrench in place on the tensioner bolt, loop the serpentine accessory drive belt loosely over the pulleys.
3. Slip the belt over the tensioner.
4. Remove the wrench from the tensioner bolt and the belt will tighten itself.
