Page 1

background image

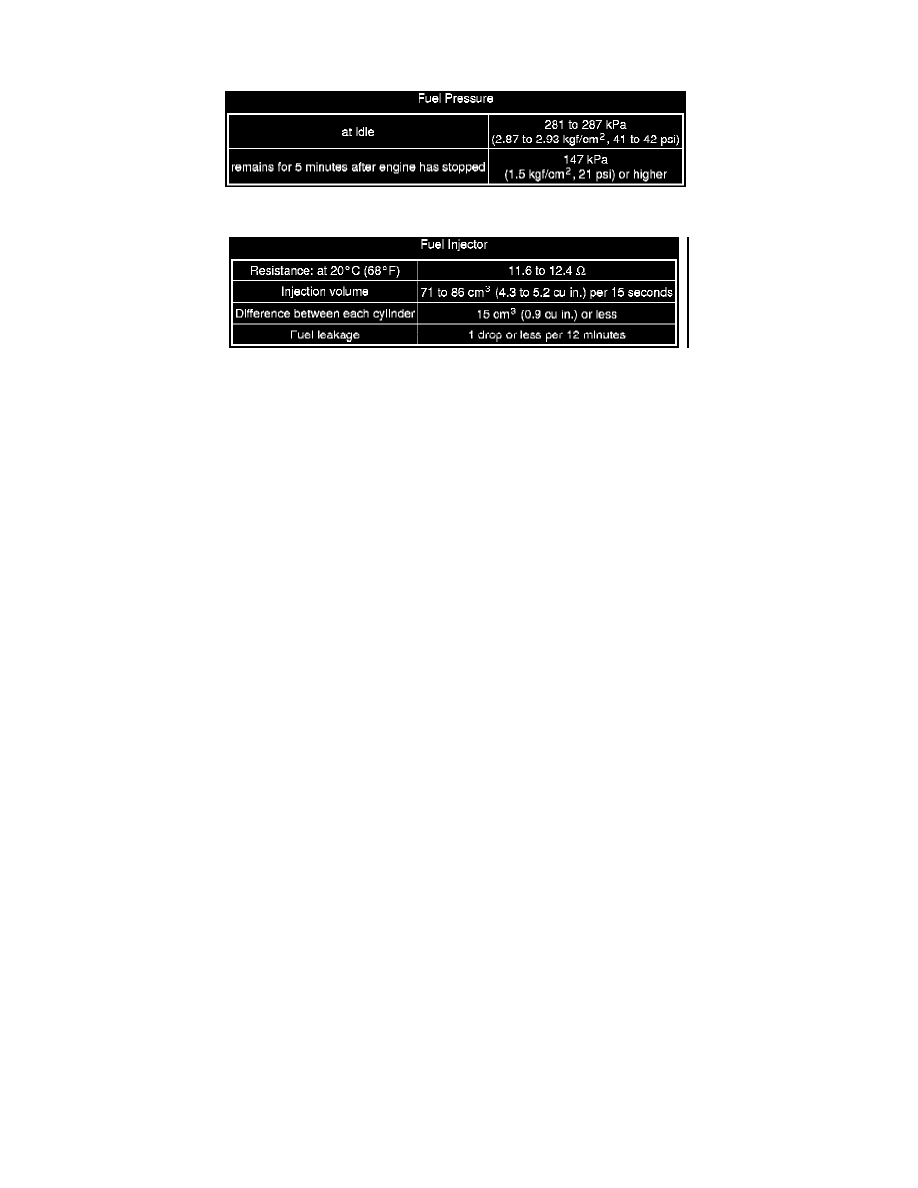

Fuel Pressure: Specifications

Fuel Pressure

Volume

Engine, Cooling and Exhaust
Engine
Tune-up and Engine Performance Checks
Fuel Pressure
System Information
Specifications
