Camry L4-2.4L (2AZ-FE) (2005)
/Page-338001.png)

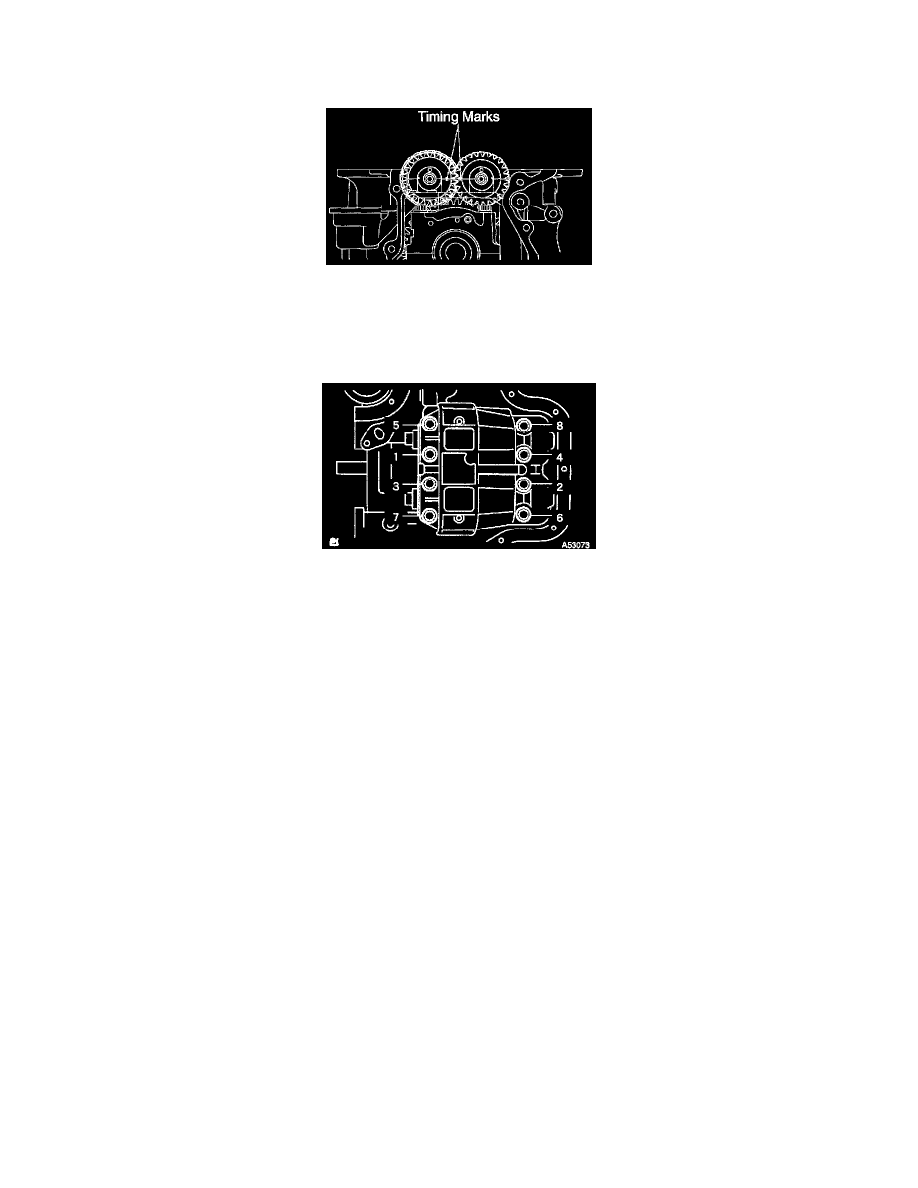

Balance Shaft: Specifications
Timing Marks
Housing Bolt Torque
Torque ........................................................................................................................................................................................................ 22 Nm (16 ft lbs)
Torque Sequence
NOTE:Temporarily tighten 8 bolts in several passes as the sequence shows, then fully tighten with specified torque.
