Camry L4-2.4L (2AZ-FXE) Hybrid (2007)
Control Module: Technical Service Bulletins
A/T Controls - U660E Compensation Code Input Process
TRANSMISSION & CLUTCH
TC003-06
June 9, 2006
Title:
U660E AUTOMATIC TRANSAXLE COMPENSATION CODE INPUT PROCESS
Models:
'07 Camry
Introduction
Some 2007 model year Camry vehicles are equipped with a U660E (6-speed) transaxle. These transaxles are tested and marked with an automatic
transaxle compensation value to improve drivability and reduce the amount of time needed to complete the Transmission Control Module (TCM)
"Learning" process.
CAUTION:
The transaxle compensation value registration process MUST be performed anytime one of the following components are replaced:
^
Transaxle
^
Transmission Control Module (TCM)
Failure to follow the procedure below may lengthen the time to complete the TCM "Learning" process, potentially resulting in performance
concerns.
Applicable Vehicle:
^
2007 model year Camry vehicles equipped with the U660E (6-speed) automatic transaxle.

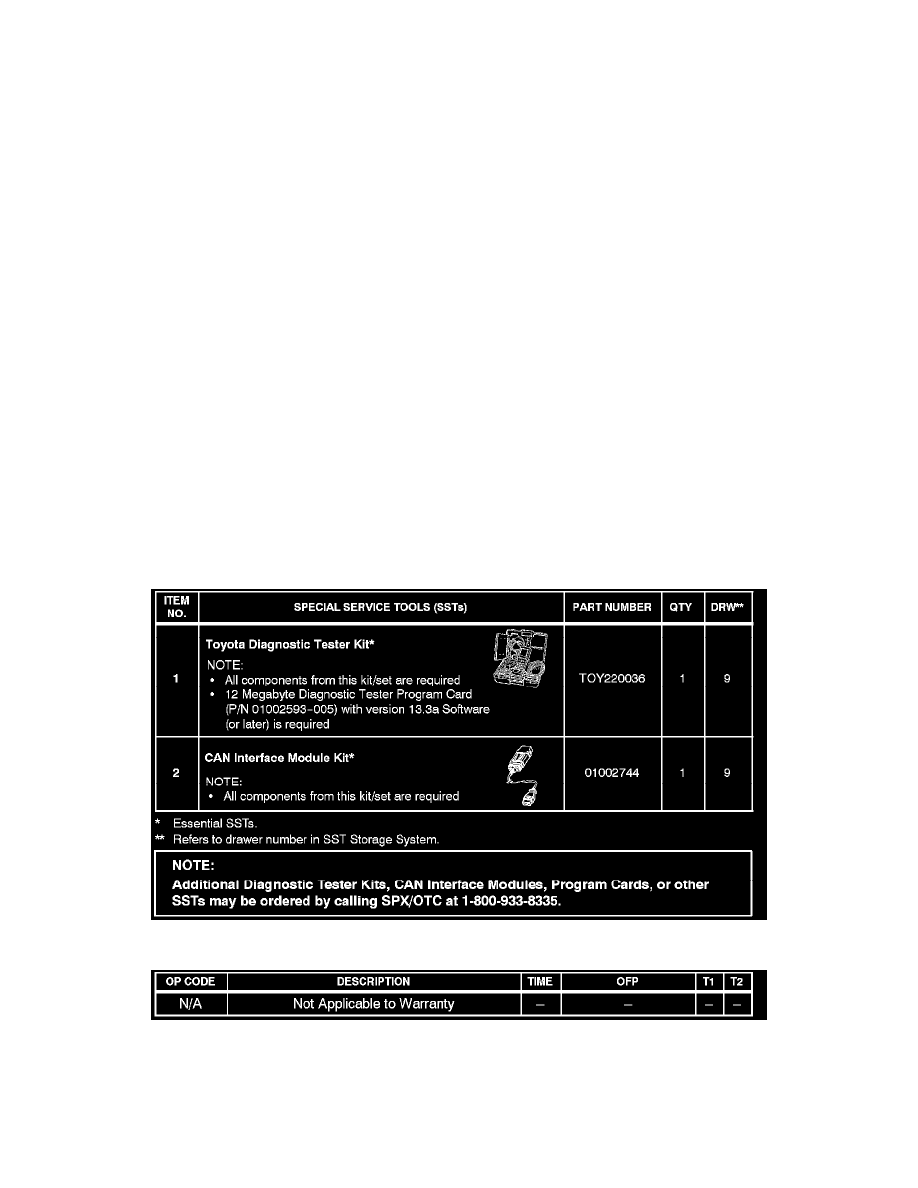

Required SSTs
Warranty Information
Registration Procedure
Refer to the Technical Information System (TIS), 2007 model year Camry Repair Manual: U660E Automatic Transaxle: Automatic Transaxle System:
Manual Shifting Test, Registration.
