Camry CE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI (1999)

Page 1
background image

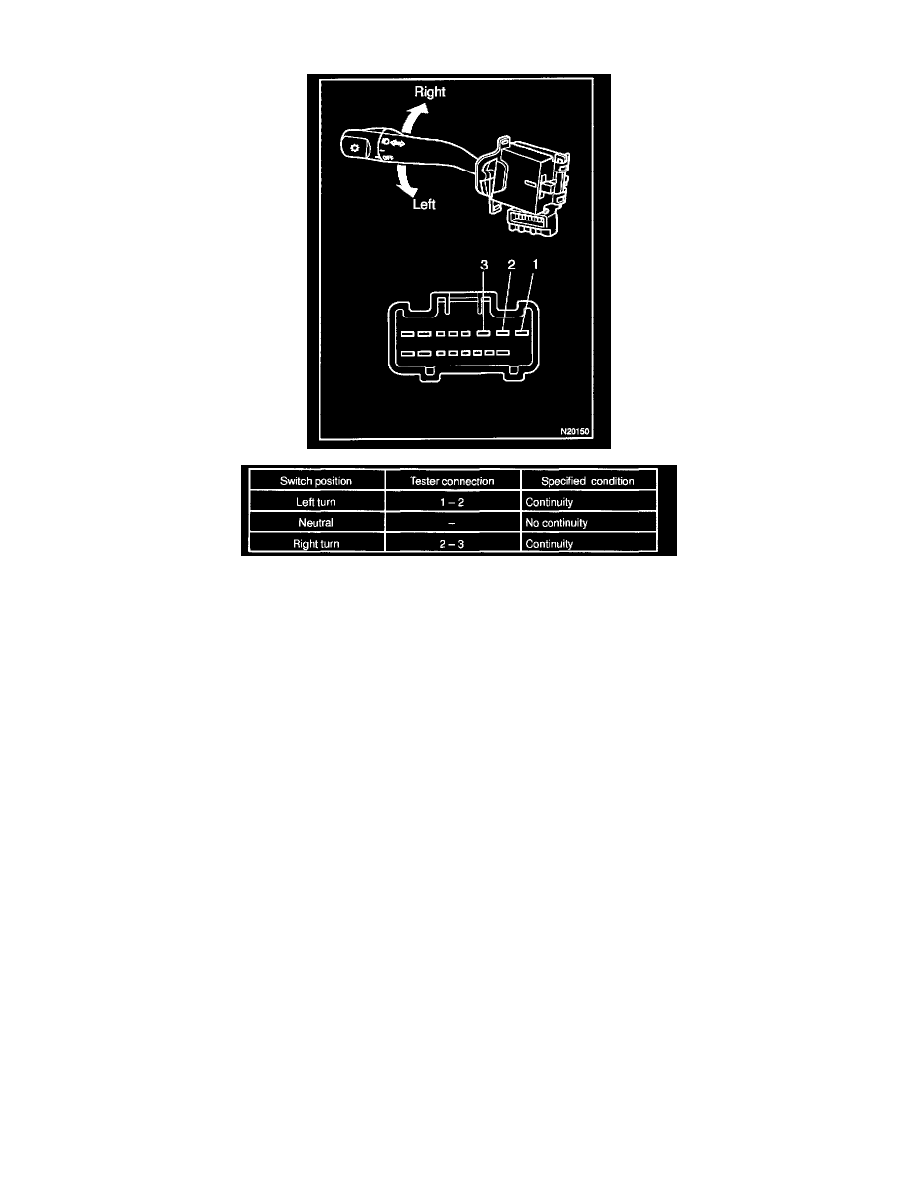

Turn Signal Switch: Testing and Inspection

INSPECT TURN SIGNAL SWITCH CONTINUITY

If continuity is not as specified, replace the switch.
