Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
Engine, Cooling and Exhaust
Cooling System
Relays and Modules - Cooling System / Radiator Cooling Fan Motor Relay / Locations
Page 1789
Page 4

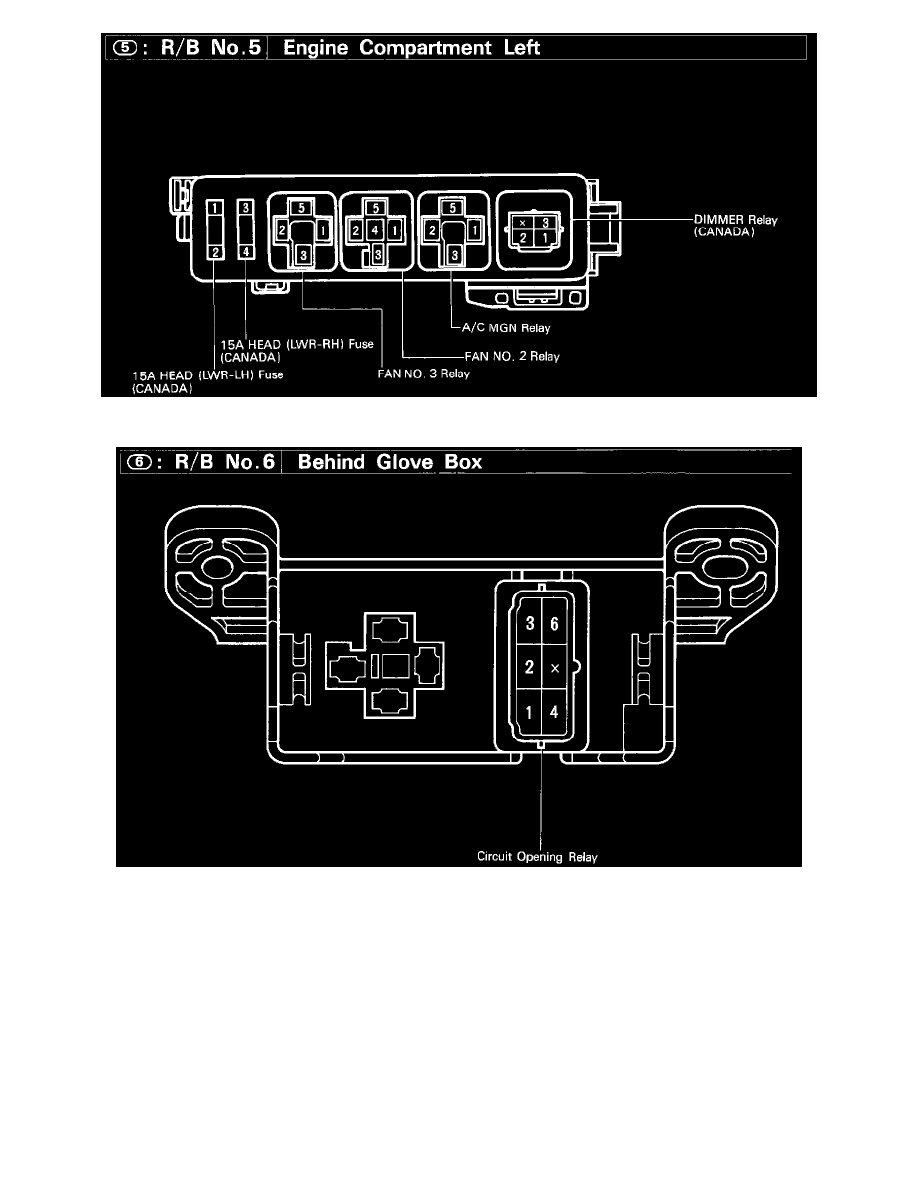

Locations-R/B No.5 Engine Compartment Left (Fig 26)
Locations-R/B No.6 Behind Glove Box (Fig 26)
