Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-874002.png)
-

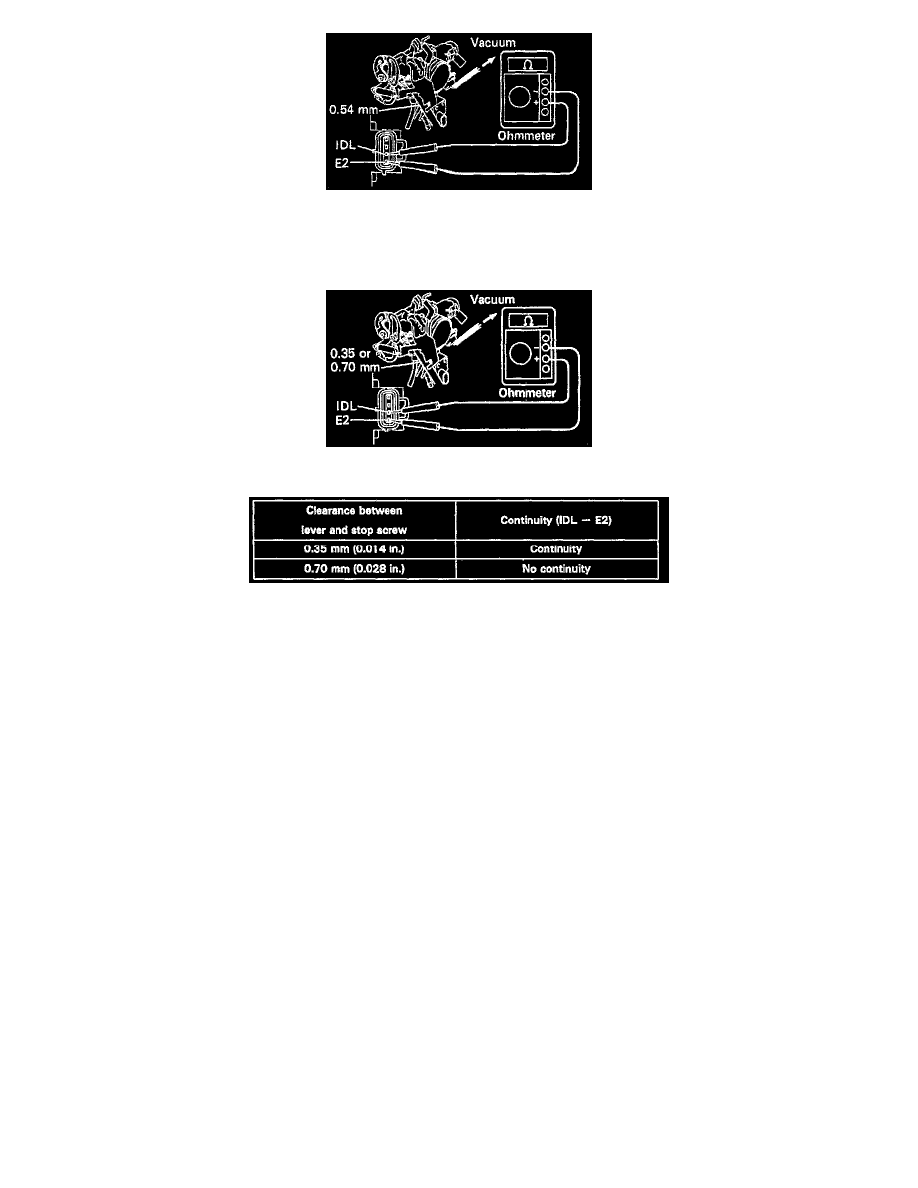

Apply vacuum to the throttle opener.
-
Insert a 0.54 mm (0.021 in.) thickness gauge, between the throttle stop screw and stop lever.
-
Connect the test probe of an ohmmeter to the terminals IDL and E2 of the sensor.
-
Gradually turn the sensor clockwise until the ohmmeter deflects, and secure it with the 2 set screws.
-
Recheck the continuity between terminals IDL and E2.
