Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-1042001.png)
Variable Induction Control Valve: Service and Repair

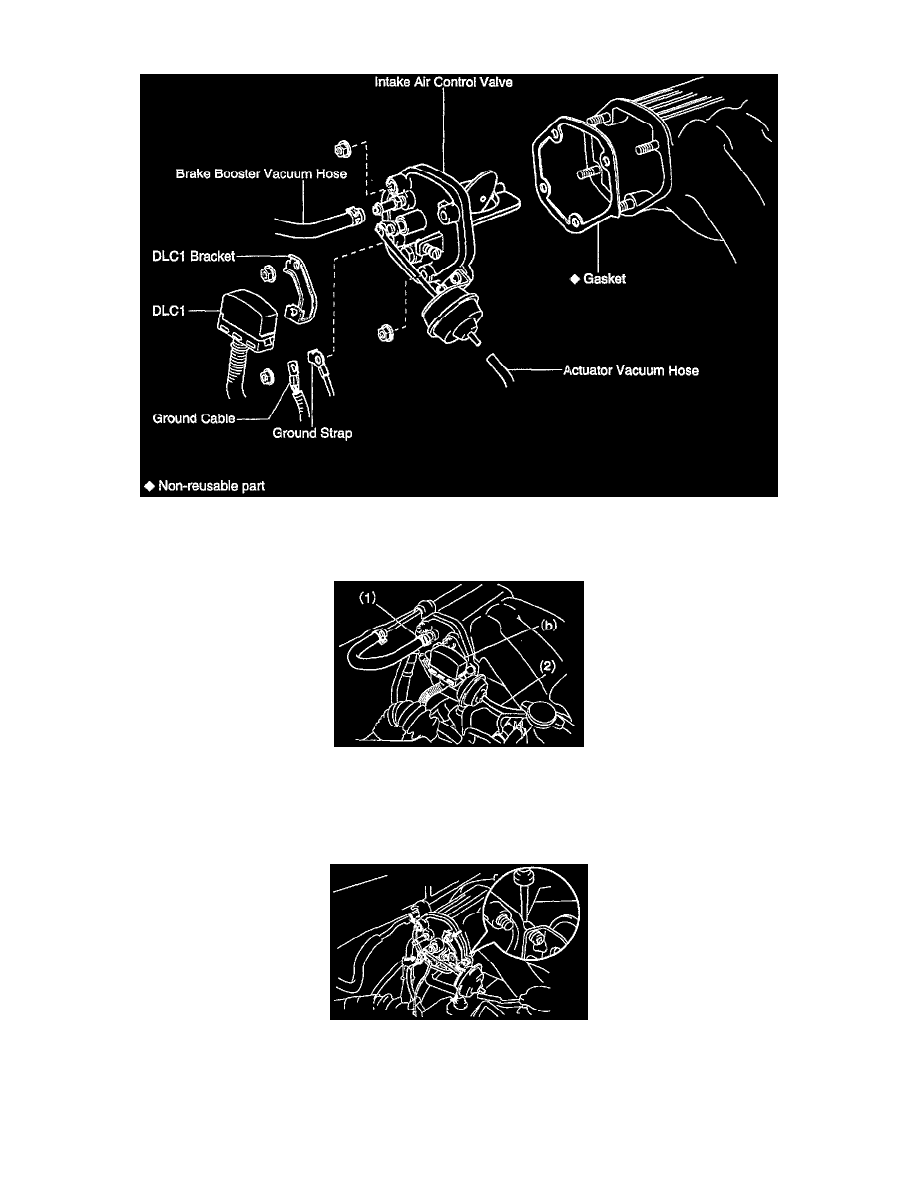

INTAKE AIR CONTROL VALVE REMOVAL
1. DISCONNECT HOSES FROM INTAKE AIR CONTROL VALVE
-
Disconnect these hoses:
(1) Brake booster vacuum hose
(2) Actuator vacuum hose
-
Disconnect the DLC1.
2. REMOVE INTAKE AIR CONTROL VALVE
-
Remove the 4 nuts and DLC1 bracket, and disconnect the ground strap and cable.
-
Remove the intake air control valve by prying a screwdriver between the intake air control valve and air intake chamber.
-
Remove the gasket.
INTAKE AIR CONTROL VALVE INSTALLATION
1. INSTALL INTAKE AIR CONTROL VALVE
