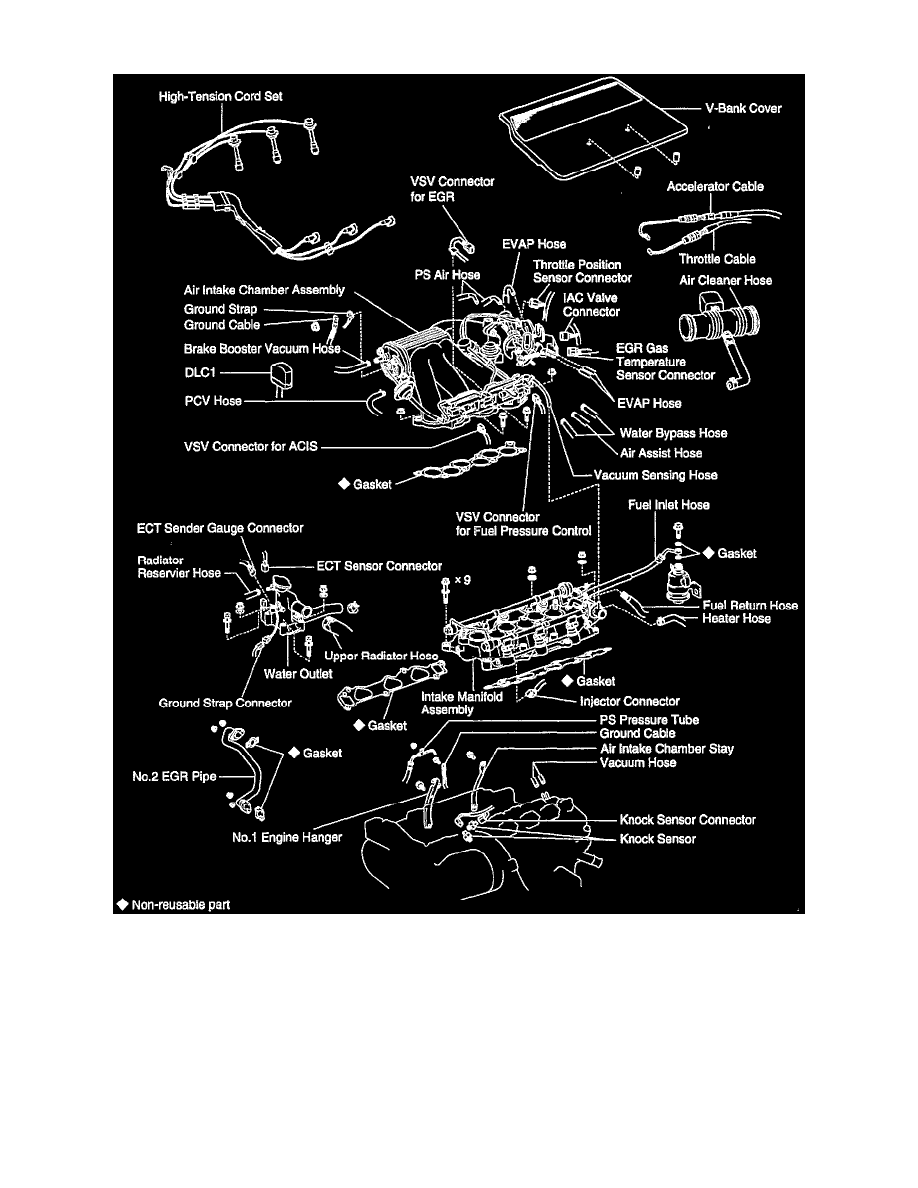

Knock Sensor: Oscilloscope Patterns and Waveforms
Reference INSPECTION USING OSCILLOSCOPE
-
With the engine racing (4,000 rpm) measure between terminals KNKR, KNKL of ECM and body ground.
-
The correct waveform is as shown.
-
Spread the time &n the horizontal axis, and confirm that period of the wave is 141 micro secs. (Normal mode vibration frequency of knock sensor:
7.1 KHz).
-
If normal mode vibration frequency is not 7.1 KHz, the sensor is malfunctioning.
