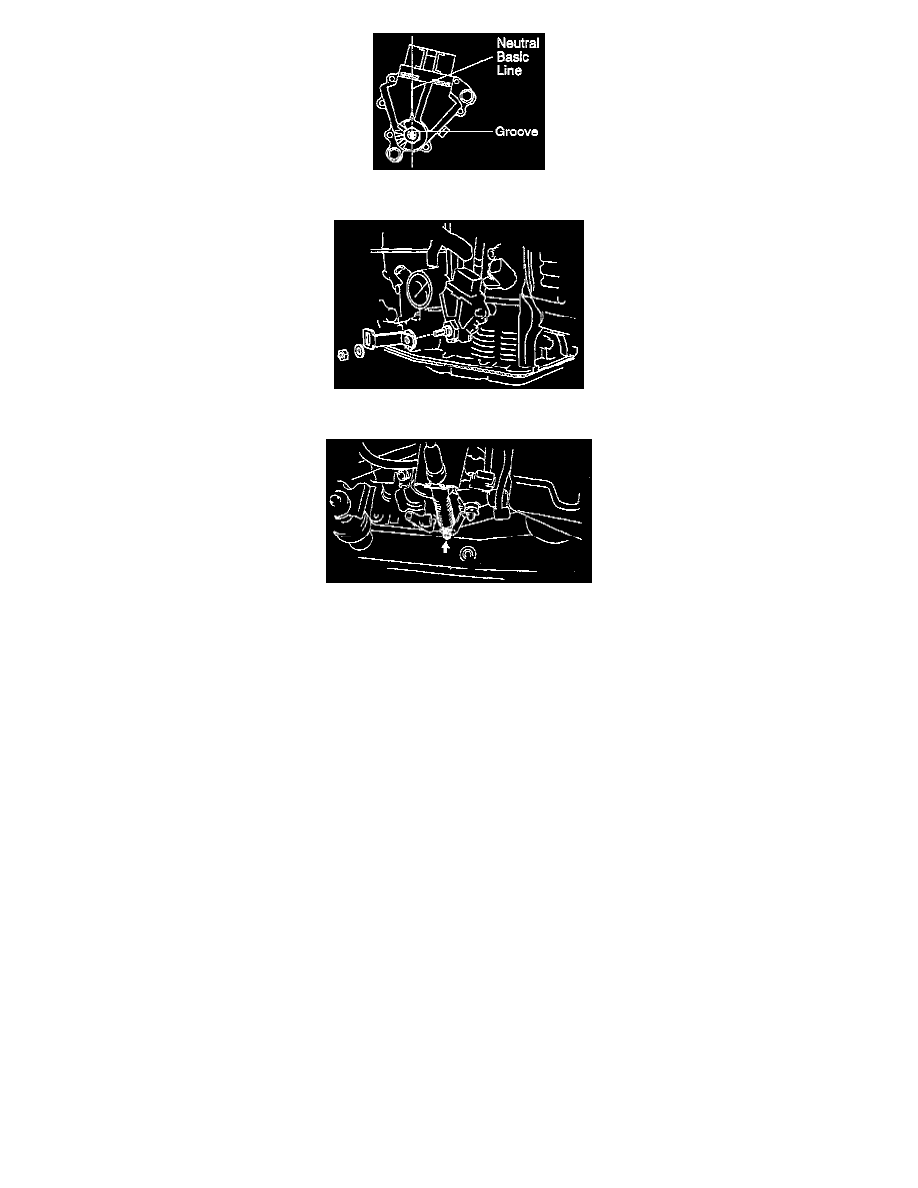

Adjust the park/neutral position switch.

-

Install the transaxle control shaft lever.

-

Install the control cable and nut.

Torque: 15 Nm (150 kgf.cm, 11 ft.lb)

-

Install the clip to the shift control cable.

4. CONNECT PARK / NEUTRAL POSITION SWITCH CONNECTOR
5. TEST DRIVE VEHICLE
