Camry Solara SLEV6 V6-3.0L (1MZ-FE) (2000)
/Page-1189001.png)

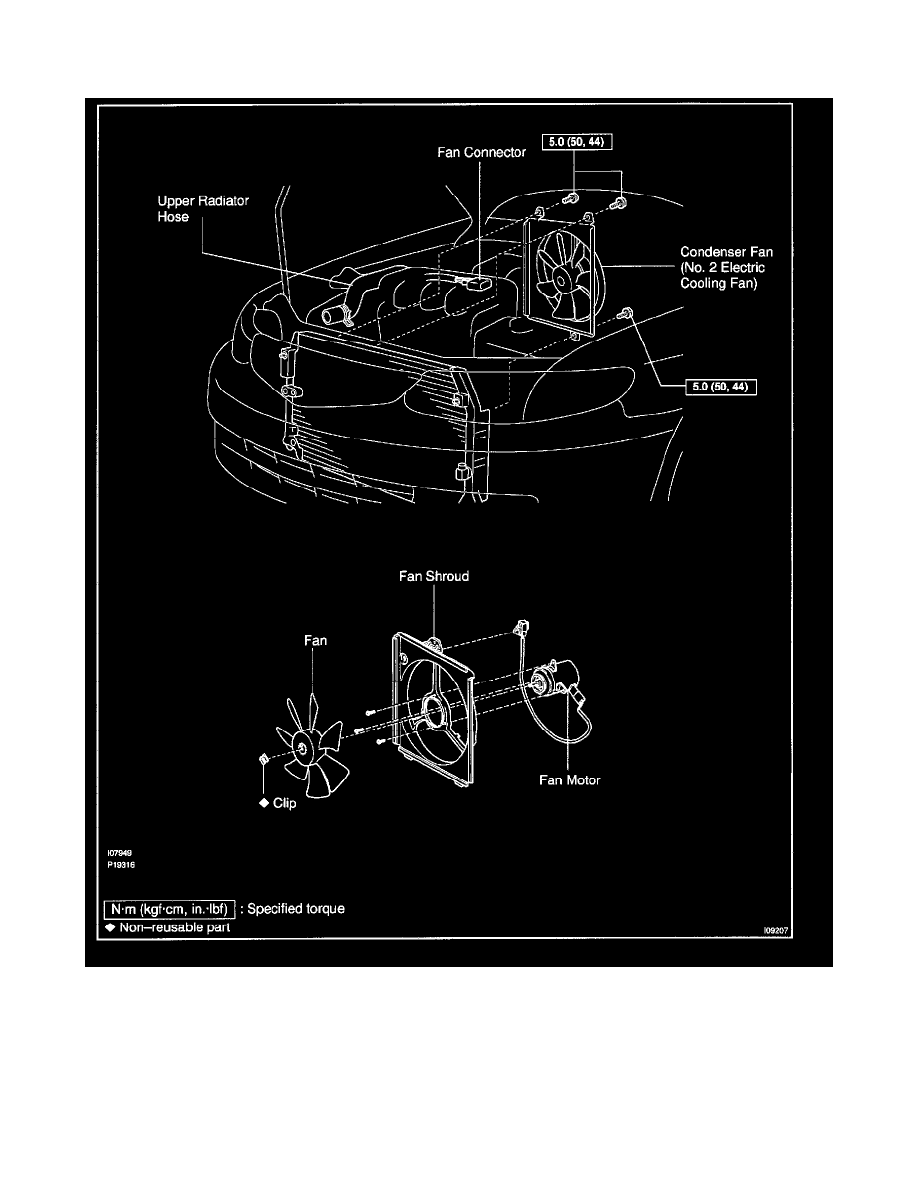

Condenser Fan: Service and Repair
Disassembly And Reassembly
DISASSEMBLY
1. REMOVE FAN
Remove the clip and fan.
NOTE: When removing the clip and fan, do not apply too much force to the motor shaft. And do not scratch the motor shaft.
2. REMOVE FAN MOTOR
a. Disconnect the lead wire from the fan shroud.
b. Remove the 3 screws and fan motor.
REASSEMBLY
1. INSTALL FAN MOTOR
