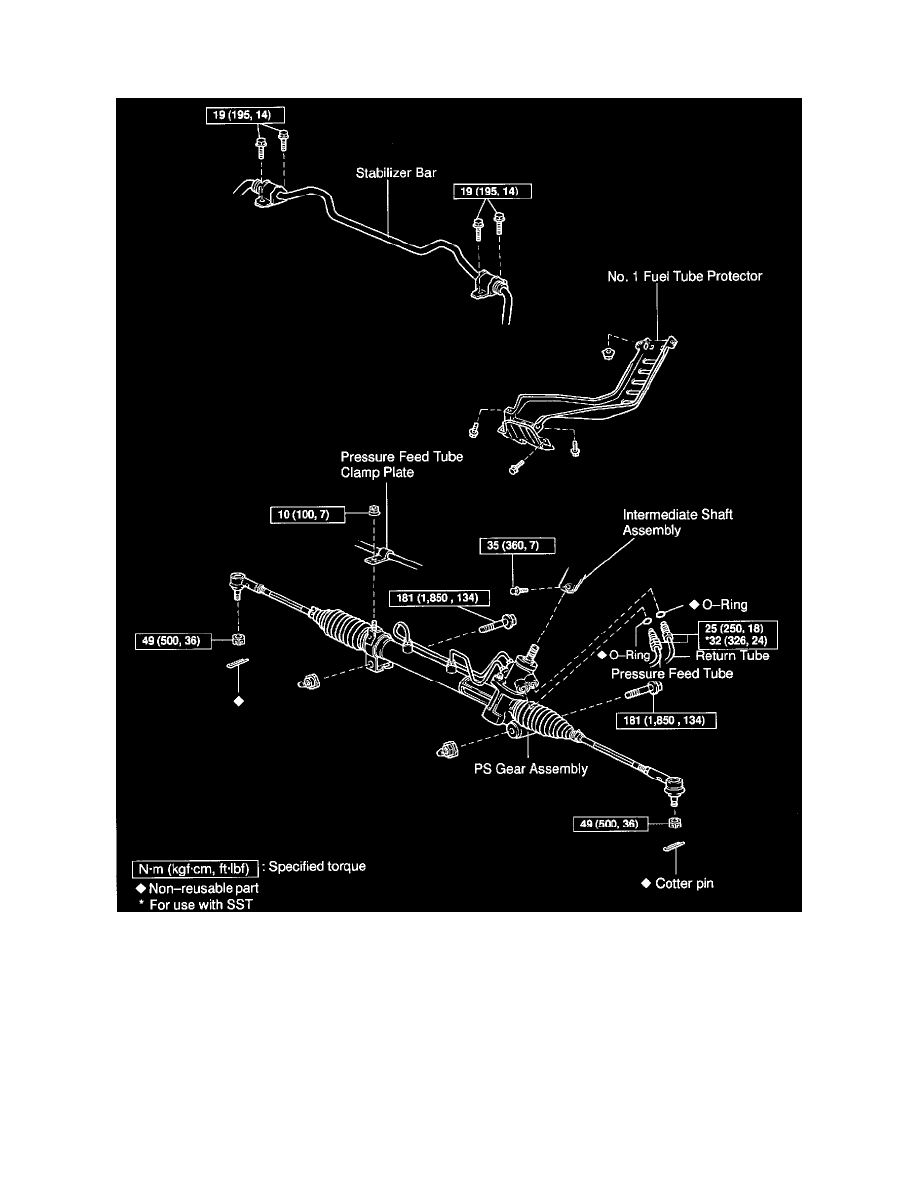

Camry Solara SLEV6 V6-3.0L (1MZ-FE) (2000)
b. Remove the rack guide spring and rack guide.
c. Remove the rack guide seat from the guide.
8. REMOVE RACK HOUSING CAP
9. REMOVE SELF-LOCKING NUT
Using SST to stop the control valve shaft rotating, remove the nut.
SST 09616-00010
10. REMOVE DUST COVER
11. REMOVE CONTROL VALVE HOUSING WITH CONTROL VALVE ASSEMBLY
a. Place matchmarks on the control valve housing and rack housing.
b. Remove the 2 bolts and control valve housing with control valve assembly.
c. Remove the gasket from the rack housing.
12. REMOVE CONTROL VALVE ASSEMBLY
a. To prevent oil seal lip damage, wind vinyl tape on the serrated part of the valve shaft.
b. Press out the valve assembly with the oil seal.
NOTICE:
^
Place a shop rag between the valve housing and the blocks.
^
Be careful not to drop the valve assembly.
^
Be careful not to damage the oil seal lip.
13. REMOVE OIL SEAL
Remove the oil seal from the control valve assembly.
14. REMOVE RACK HOUSING NO. 2 BRACKET AND GROMMET
