Brake Light Switch: Locations

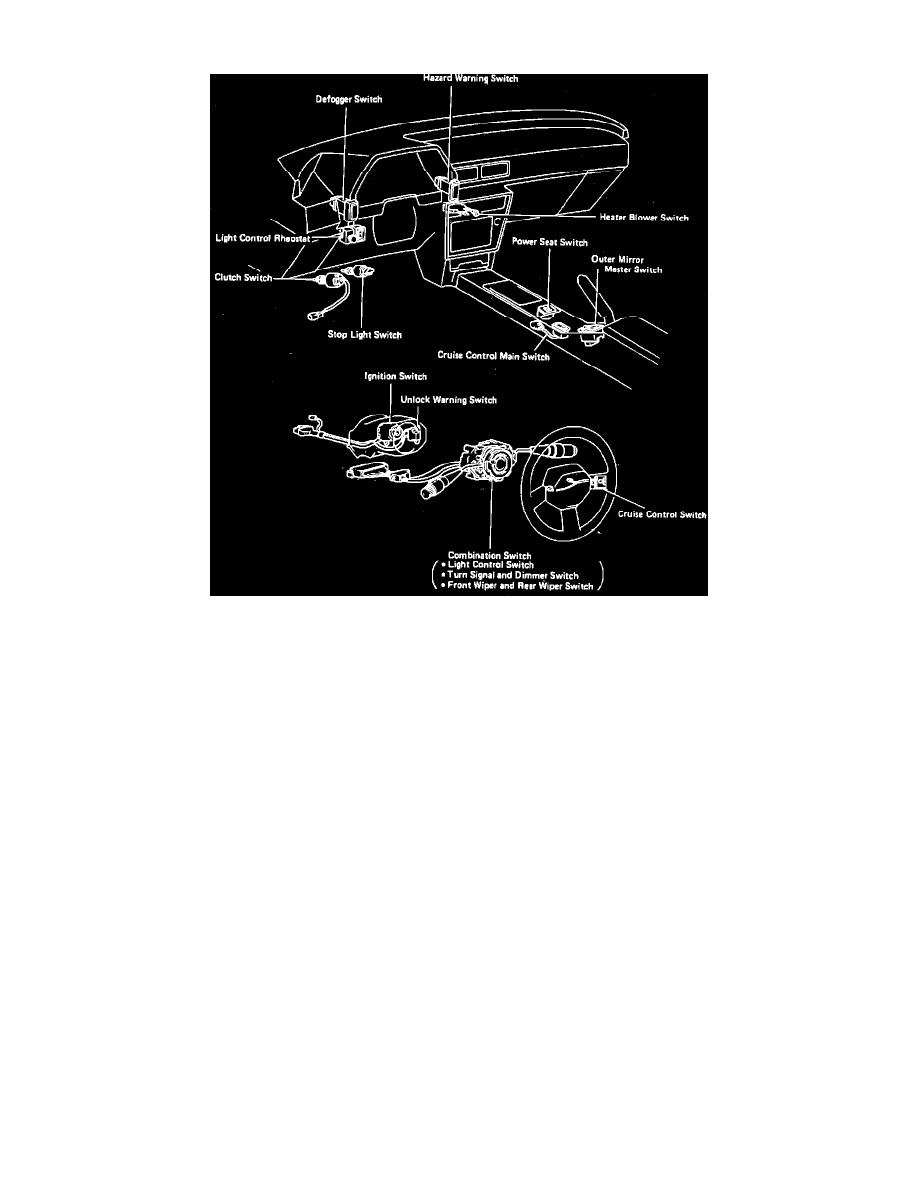

I/P & Steering Column Switches & Relays.

 Behind Brake Pedal

Applicable to:  Celica
