Celica GT L4-1.8L (1ZZ-FE) (2001)
Power Mirror Motor: Testing and Inspection

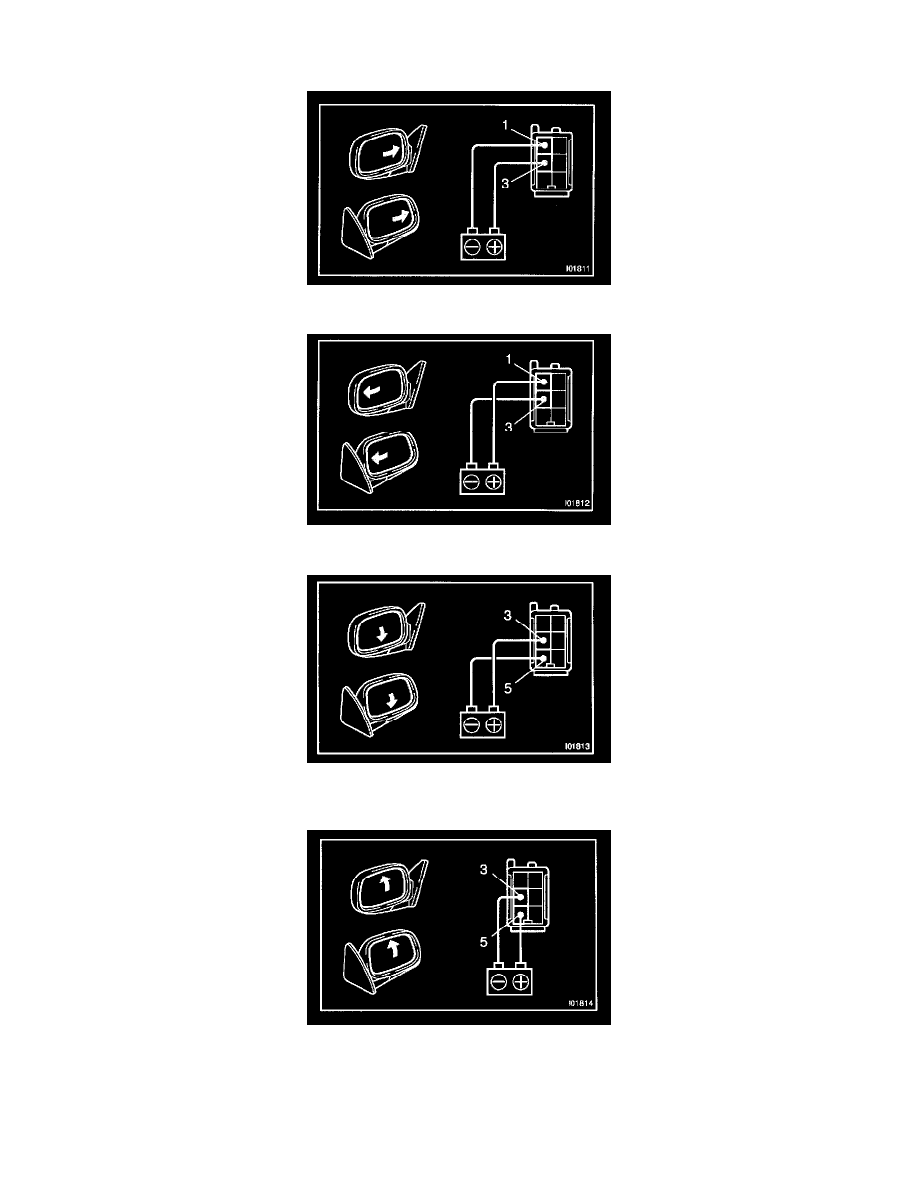

INSPECT MIRROR MOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1, and check that the mirror turns right side.
b. Reverse the polarity, and check that the mirror turns left side.
c. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5, and check that the mirror turns to the
downward.
d. Reverse the polarity, and check that the mirror turns to the upward.
If operation is not as specified, replace the mirror assembly.
