Celica GT L4-1.8L (1ZZ-FE) (2001)
/Page-36023.png)
When the ignition switch is turned to the ACC position, battery voltage is applied to the terminal ACC of the ECU and when the ignition switch is turned
to the ON position, battery voltage is applied to the terminal IG of the ECU.

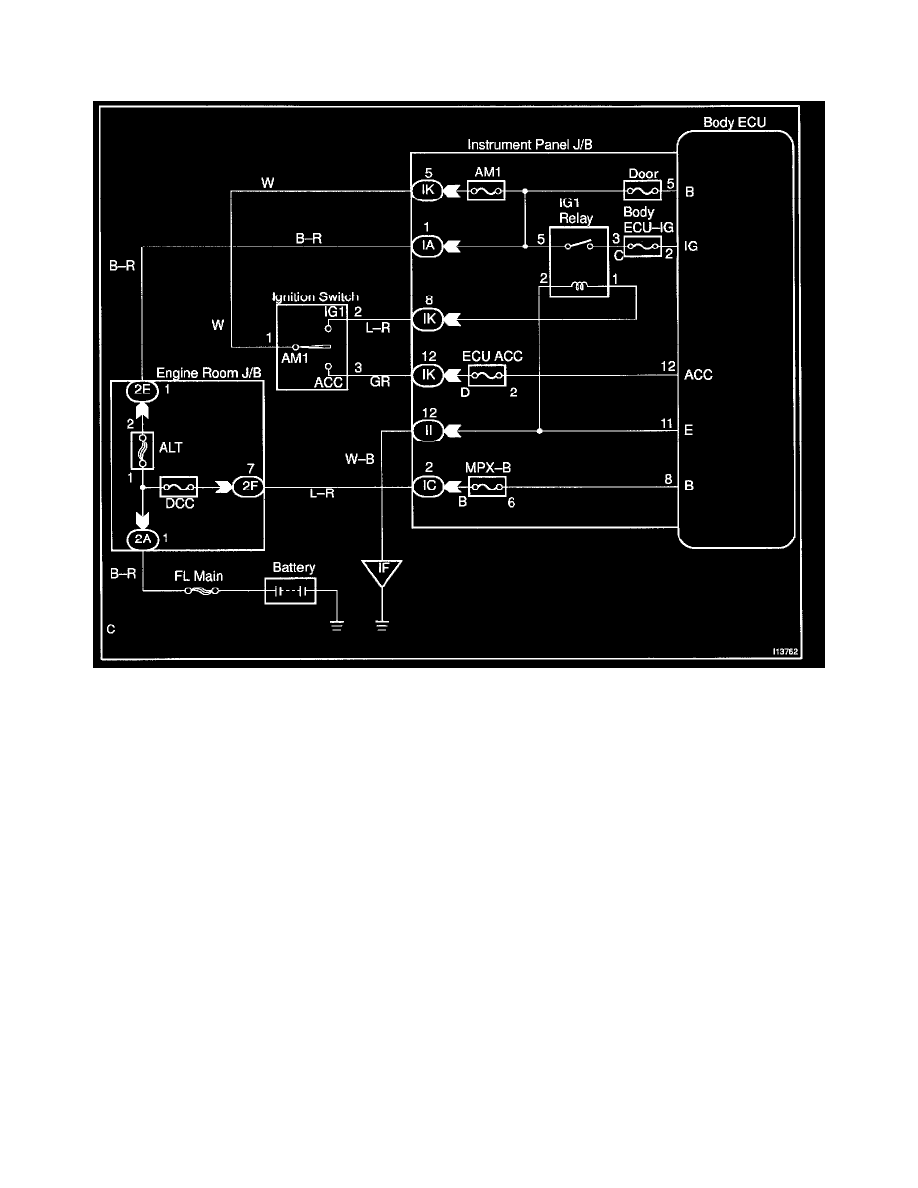

Wiring Diagram
