Celica GT L4-1.8L (1ZZ-FE) (2001)

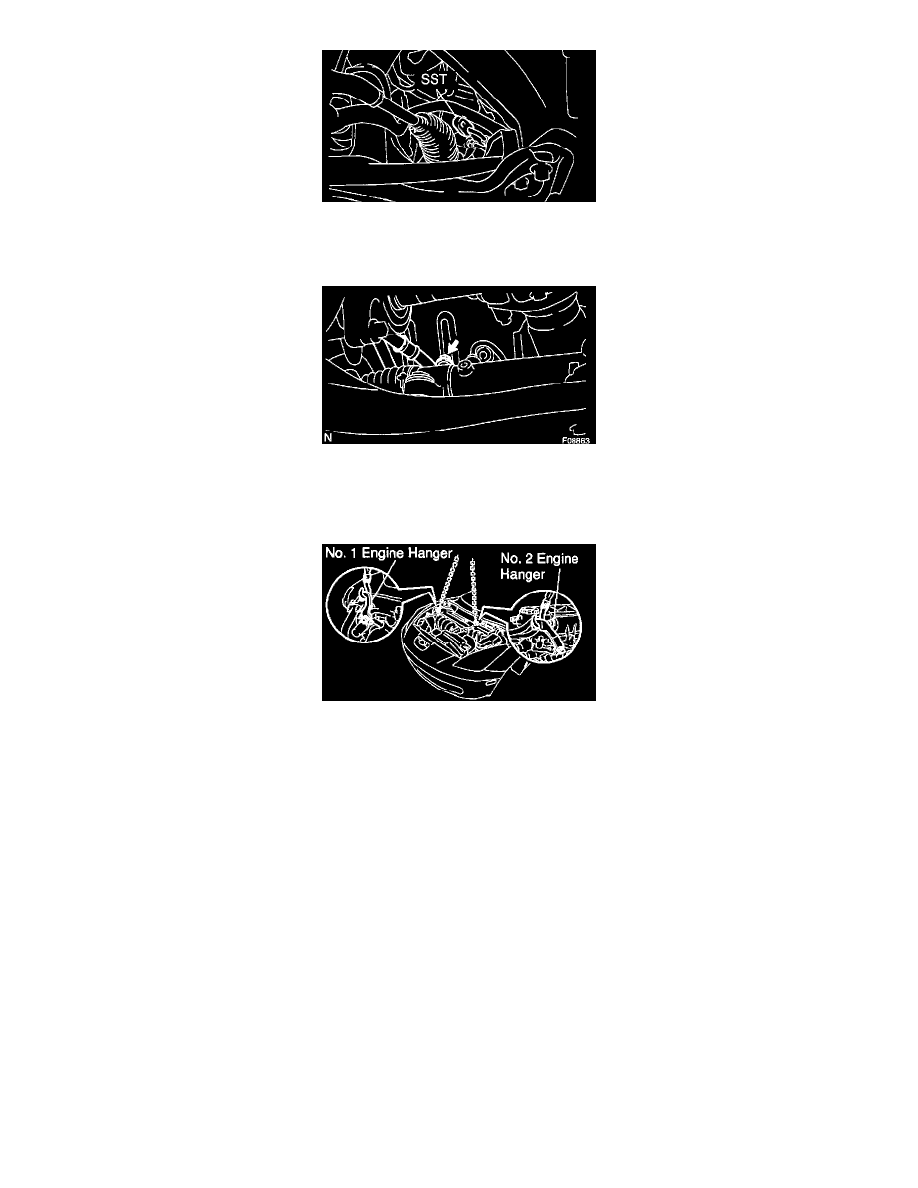

7. DISCONNECT PRESSURE FEED AND RETURN TUBES
Using SST, disconnect the pressure feed and return tubes.
SST 09023-38400
8. DISCONNECT TUBE CLAMP
Remove the bolt and disconnect the tube clamp.
9. DISCONNECT COLUMN HOLE COVER SUB-ASSEMBLY
10. REMOVE ENGINE HOOD
11. ATTACH ENGINE SLING DEVICE TO ENGINE HANGERS
(a) Remove the 4 bolts and No. 2 cylinder head cover.
(b) Disconnect the PCV hoses from the cylinder head cover.
(c) Install the No. 1 and No. 2 engine hangers in the correct direction.
1ZZ-FE Engine: Part No.:
No. 1 engine hanger: 12281-22021
No. 2 engine hanger: 12281-15040 or 12281-15050
Bolt: 91512-61016
Torque: 38 Nm (388 kgf-cm, 28 ft. lbs.)
2ZZ-FE Engine:
Part No.:
No. 1 engine hanger: 12281-88600
No. 2 engine hanger: 12282-88600
Bolt: 91512-61020
Torque: 38 Nm (388 kgf-cm, 28 ft. lbs.)
(d) Attach the engine sling device to the engine hangers.
CAUTION: Do not attempt to hang the engine by hooking the chain to any other part.
12. DISCONNECT LOWER BALL JOINT FROM LOWER SUSPENSION ARM
13. DISCONNECT STABILIZER BAR
(a) Remove the nut and disconnect the stabilizer bar.
(b) Employ the same manner described to the other side.
