Celica GT L4-1.8L (1ZZ-FE) (2001)
/Page-815004.png)

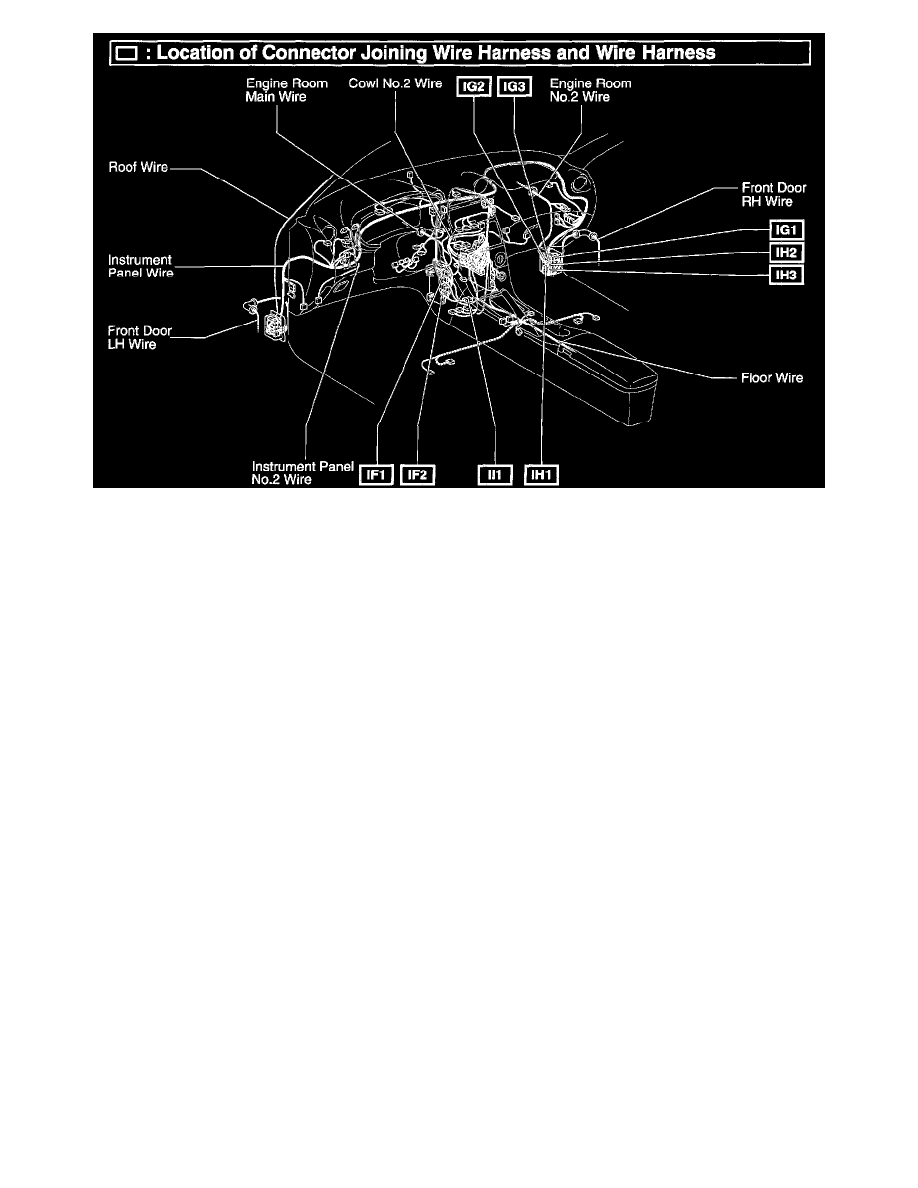

Instrument Panel / Console Harness To Harness Connectors
Connector Location
IF1
Floor Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IF2
Floor Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IG1
Engine Room No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IG2
Engine Room No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IG3
Engine Room No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IH1
Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IH2
Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IH3
Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
II1
Engine Room Main Wire and Floor Wire (Instrument Panel Brace LH)
