Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE) (1989)
/Page-957001.png)
Air Conditioning Switch: Testing and Inspection
Testing AC Switch
REMOVE
- Center dash panel
- Carefully remove AC switch

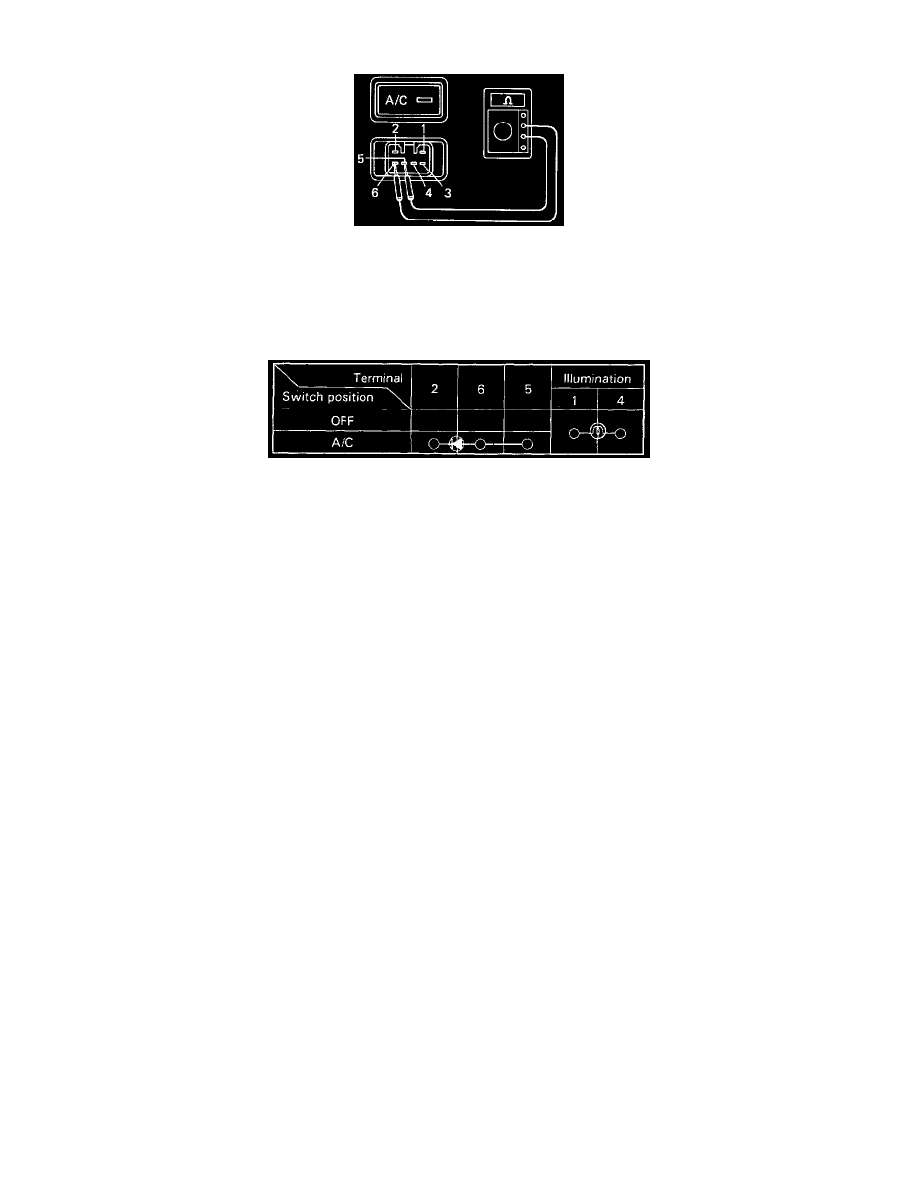

Testing AC Switch
TEST
- Check switch function according to the table.
- If the switch fails the test, replace it.
