Highlander 2WD V6-3.3L (3MZ-FE) Hybrid (2006)
_hybrid/Page-171001.png)
Door Switch: Testing and Inspection
Rear Door Courtesy Switch
REAR DOOR COURTESY SWITCH
INSPECTION
1. INSPECT REAR DOOR COURTESY SWITCH
a. Remove the rear door courtesy switch.

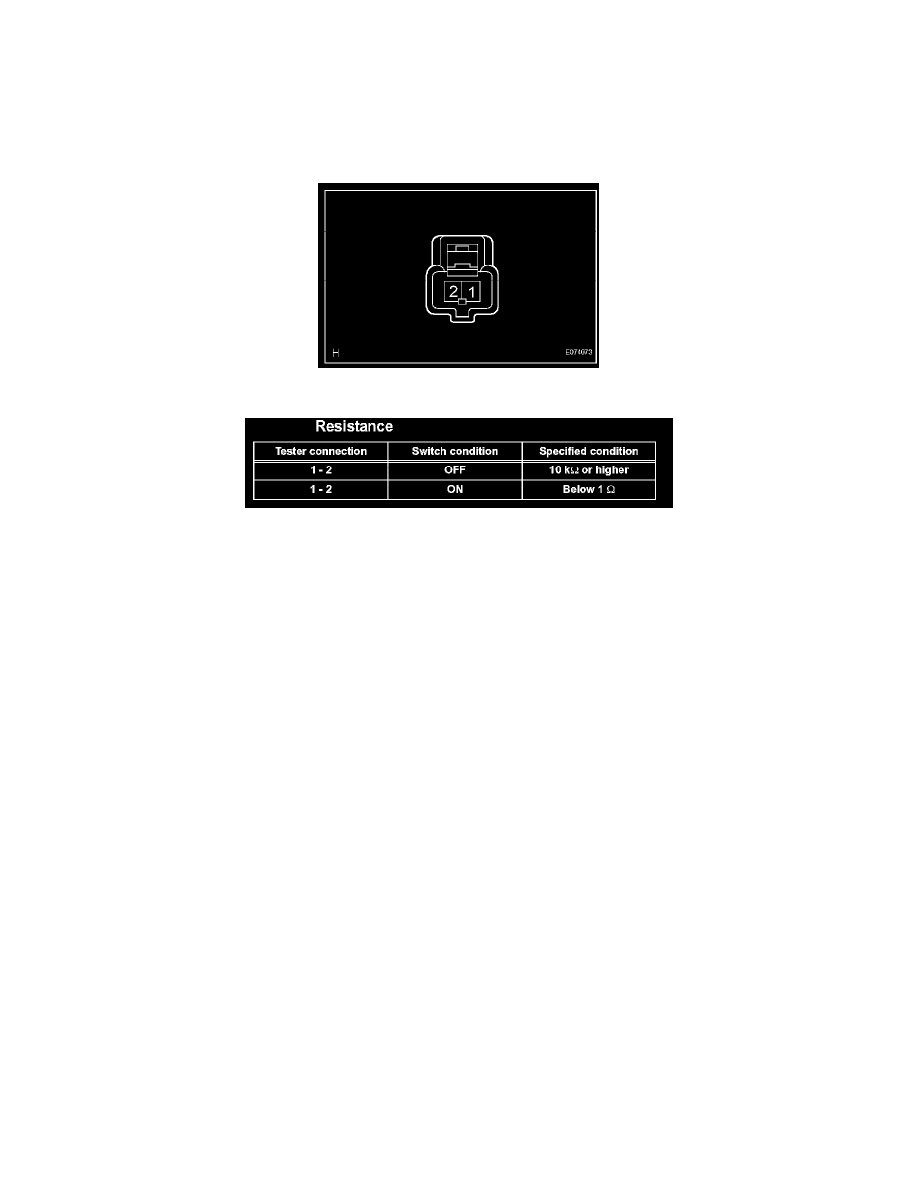

b. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the rear door courtesy switch.
