Fuse: Locations

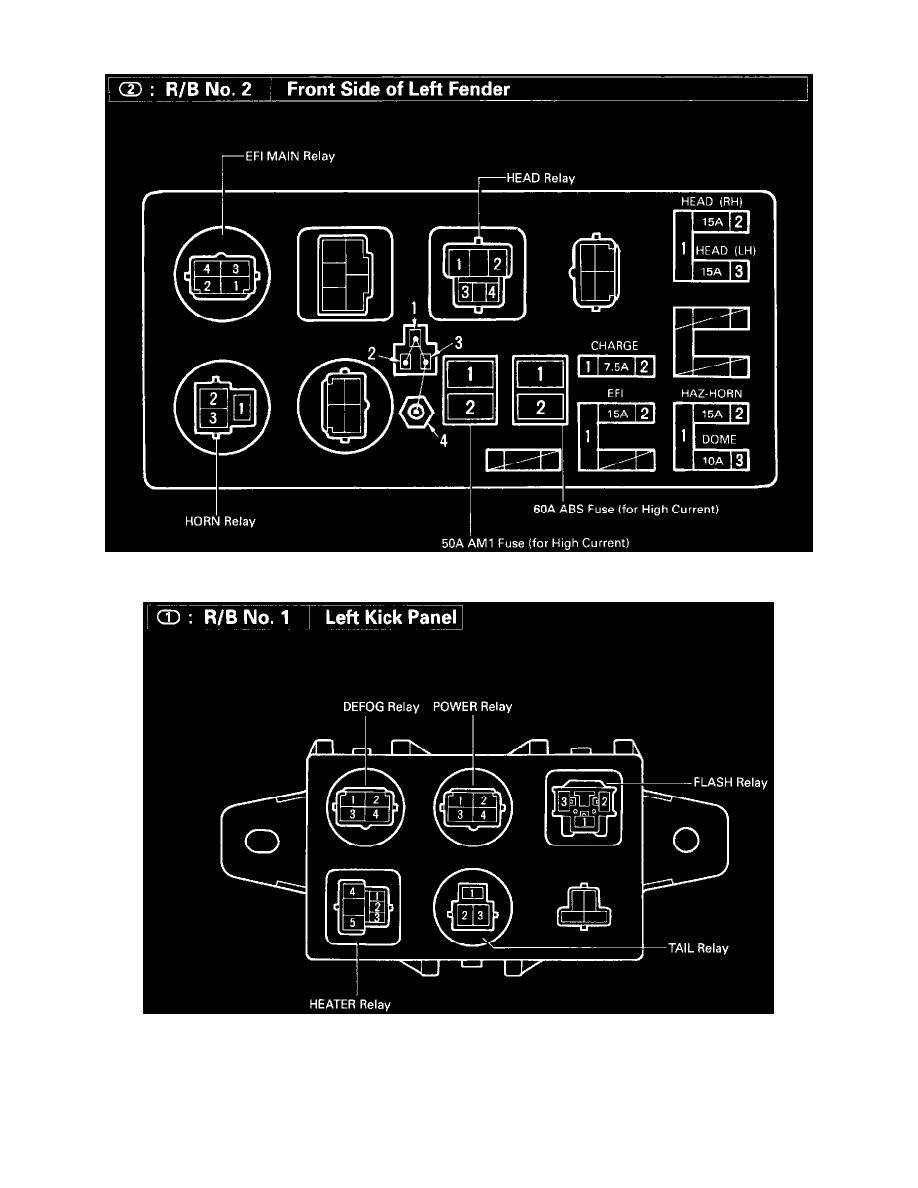

Locations-R/B No.2 Front Side Of Left Fender (Fig 18)

Locations-R/B No.1 Left Kick Panel (Fig 20)
