Prius L4-1.8L (2ZR-FXE) Hybrid (2010)
_hybrid/Page-835001.png)
Water Pump: Specifications

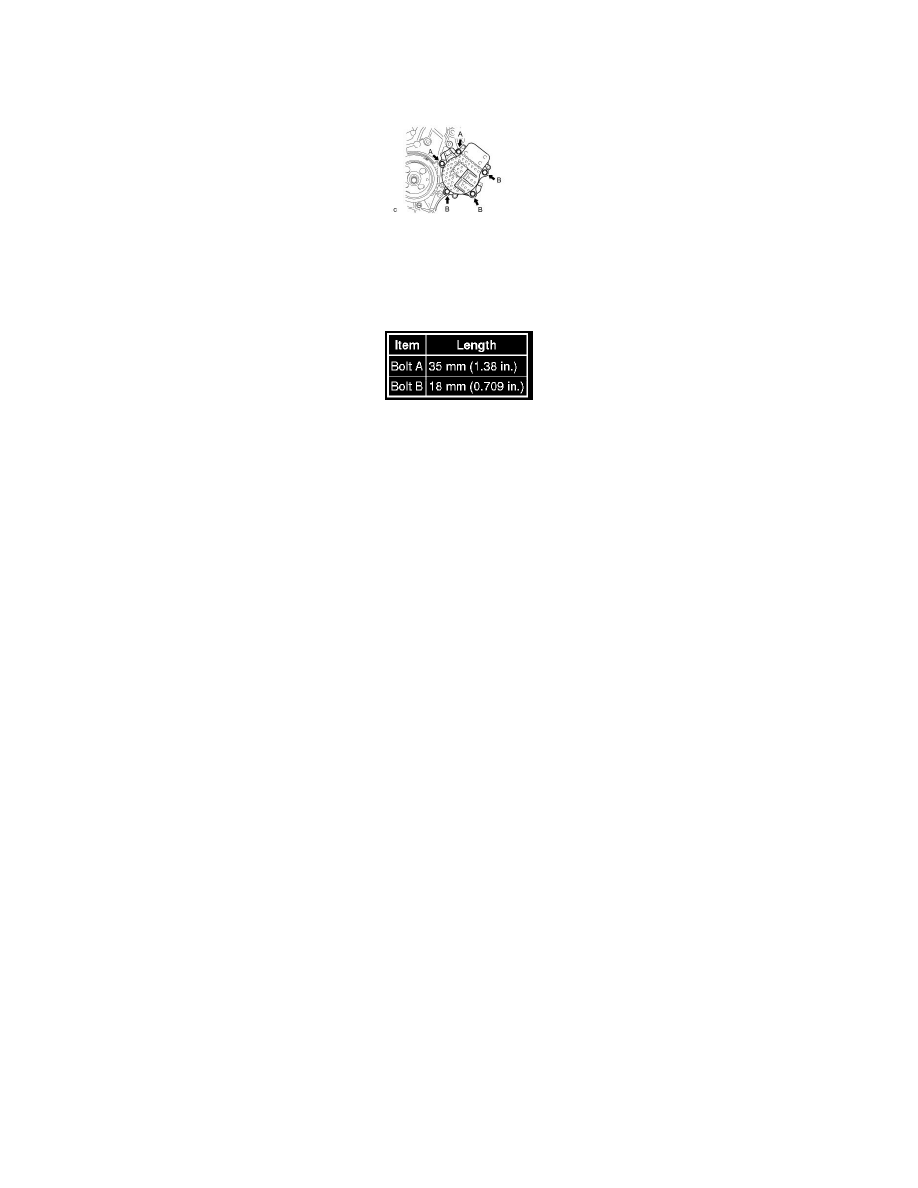

WATER PUMP ASSEMBLY
Install the water pump assembly to the timing chain cover with the 5 bolts.
Bolt A - Torque.........................................................................................................................................................................26 Nm (260 kgf-cm, 19 ft-lbf)
Bolt B - Torque.........................................................................................................................................................................21 Nm (214 kgf-cm, 15 ft-lbf)
Bolt Length:
