RAV4 4WD L4-2.0L (1AZ-FE) (2001)
/Page-384001.png)
Temperature Gauge: Testing and Inspection

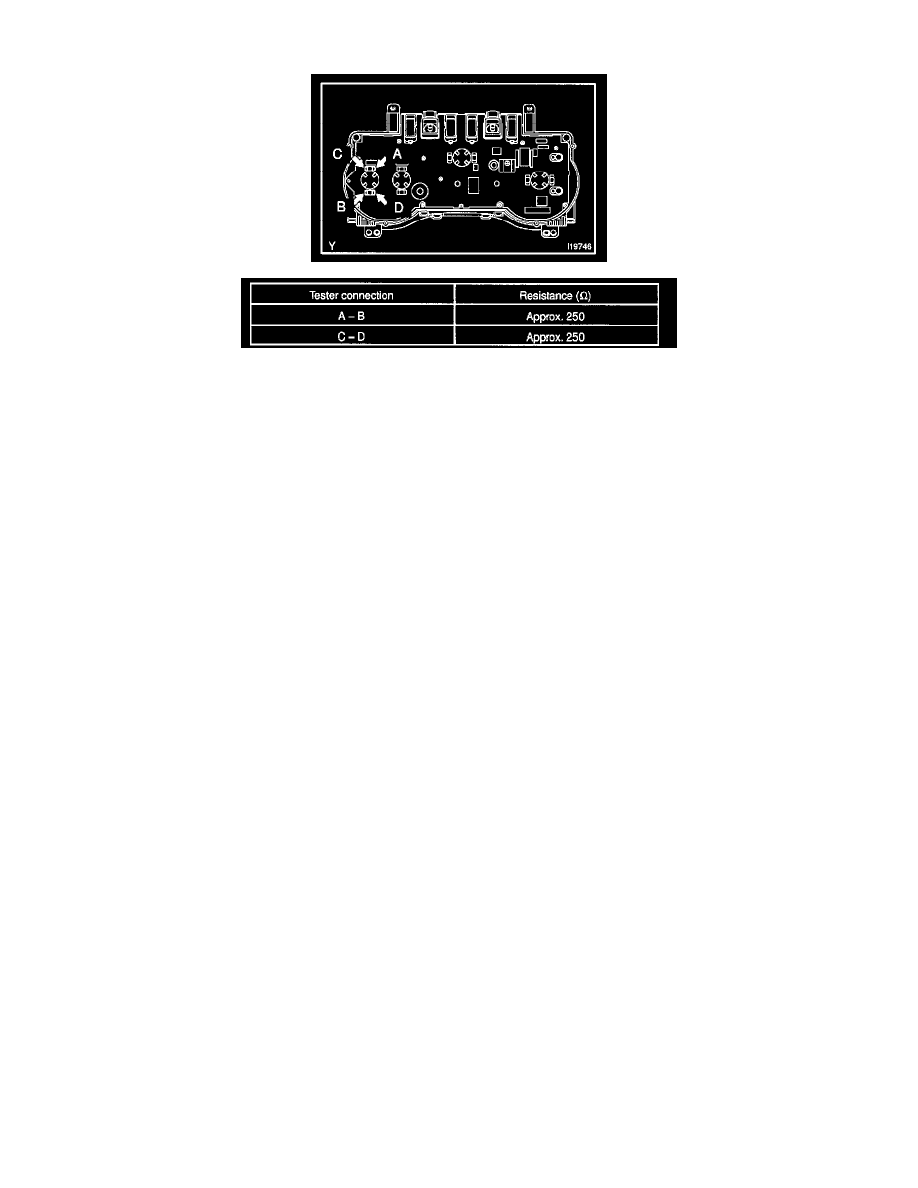

INSPECT ENGINE COOLANT TEMPERATURE RECEIVER GAUGE RESISTANCE
Measure the resistance between terminals with an ohmmeter at the positions shown in the illustration.
If resistance value is not as specified, replace the combination meter.
