RAV4 4WD L4-2.0L (1AZ-FE) (2001)
Relays and Modules
Relays and Modules - Powertrain Management
Relays and Modules - Fuel Delivery and Air Induction
Fuel Pump Relay
Component Information
Locations
Page 1

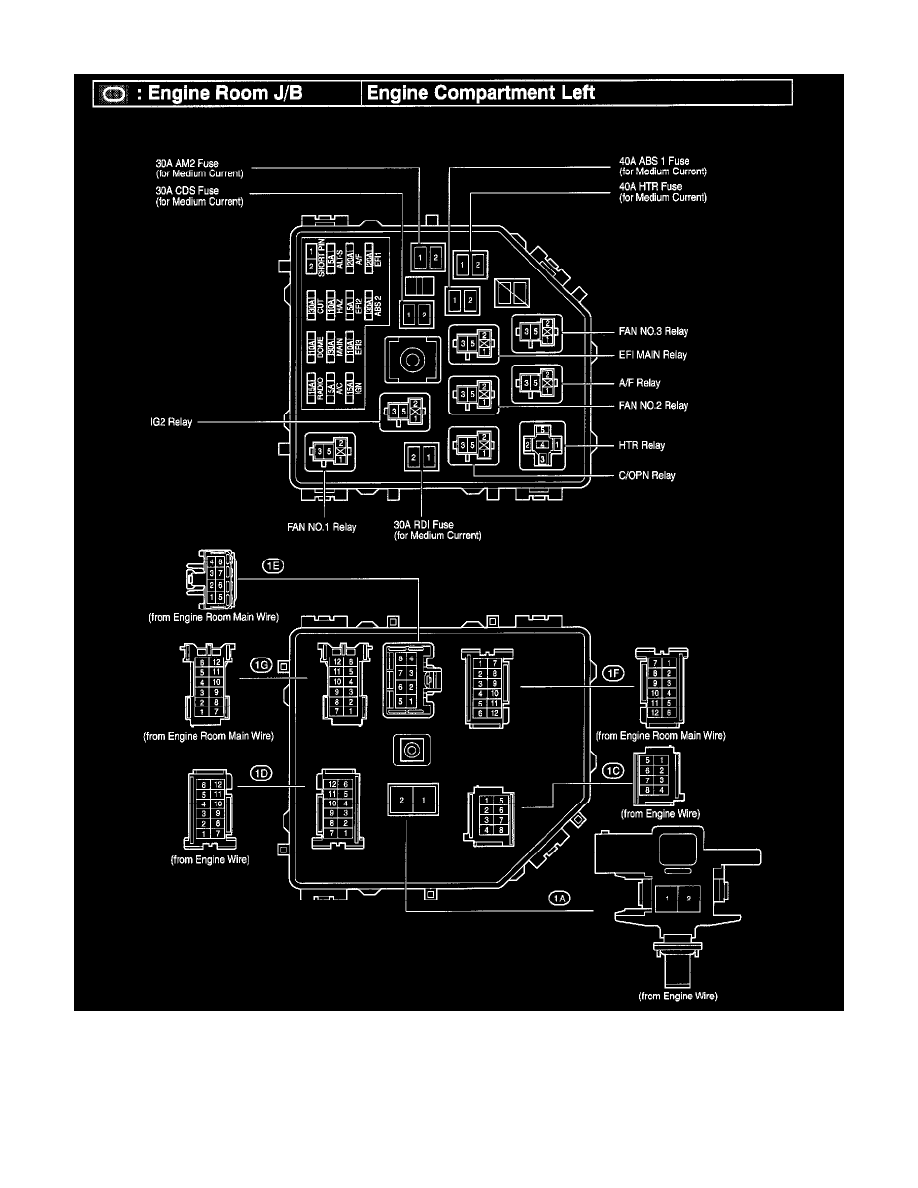

Fuel Pump Relay: Locations
Engine Room J/B
