Starting - Smart Key System|Page 5200 > < Components|Page 5193

RAV4 4WD L4-2.5L (2AR-FE) (2009)

  • Starting and Charging
  • Sensors and Switches - Starting and Charging
  • Ignition Switch
  • Component Information
  • Locations
  • Starting - Smart Key System

Page 1
background image

Ignition Switch: Locations
Starting - Smart Key System

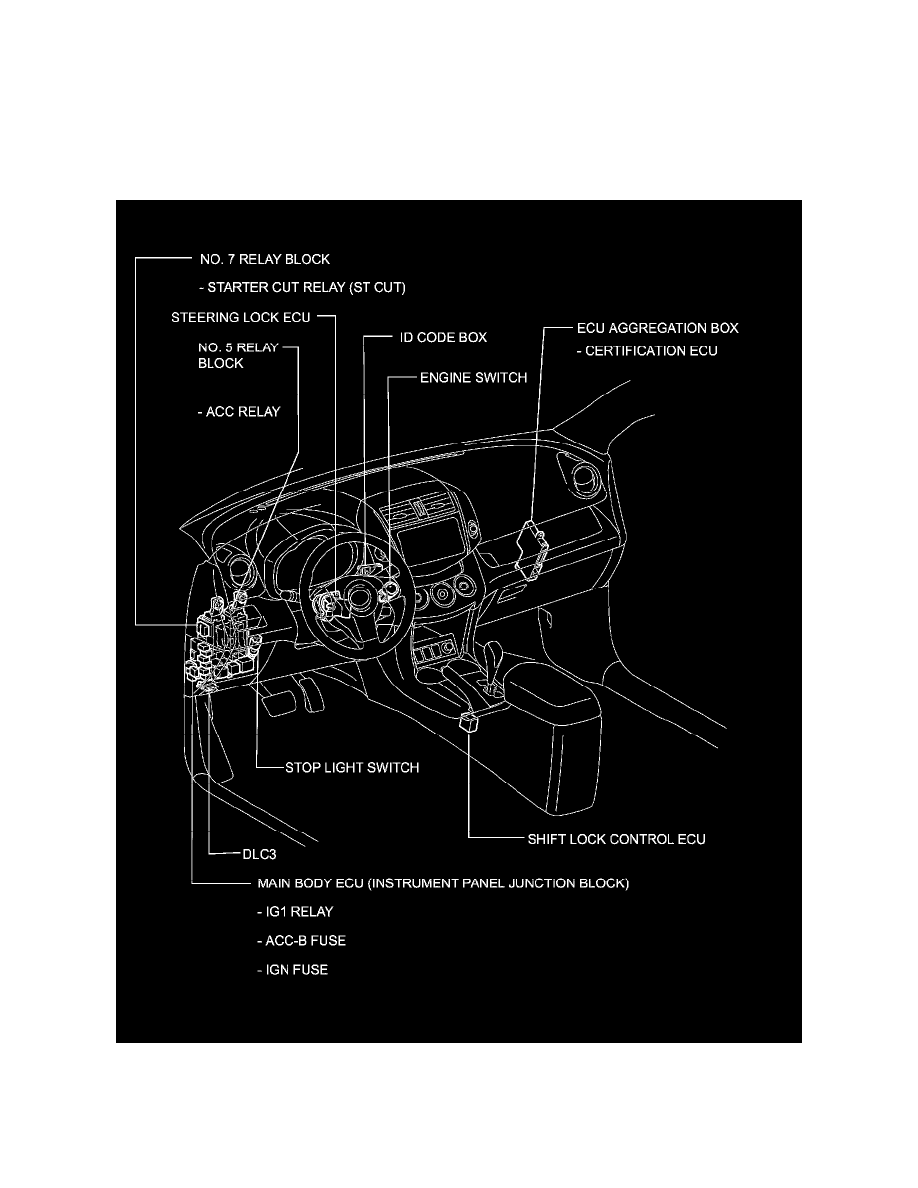

2AR-FE STARTING: SMART KEY SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION

  • Starting and Charging
  • Sensors and Switches - Starting and Charging
  • Ignition Switch
  • Component Information
  • Locations
  • Starting - Smart Key System
