Sequoia 2WD V8-4.7L (2UZ-FE) (2003)
/Page-311003.png)

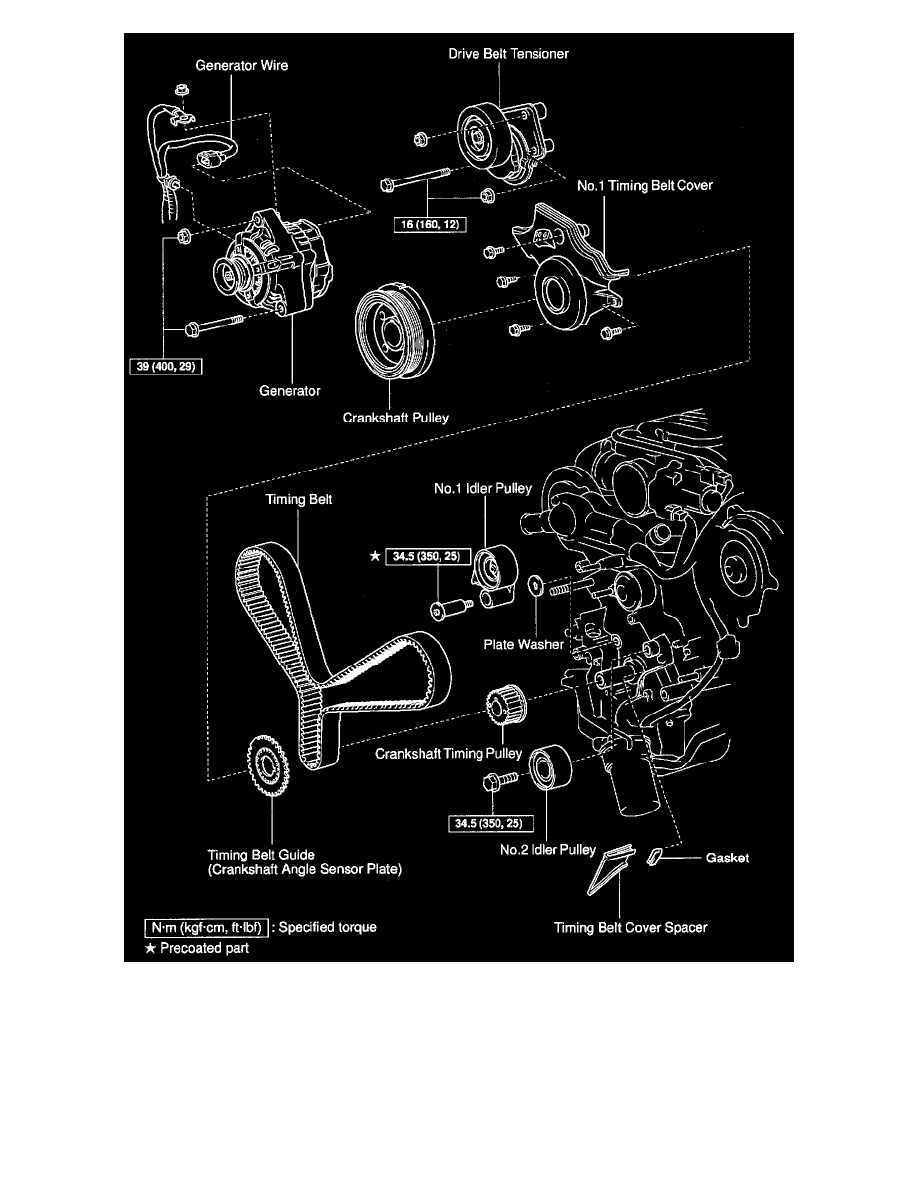

Part 4 Of 4
REMOVAL
1. REMOVE ENGINE UNDER COVER
2. DRAIN ENGINE COOLANT
3. REMOVE RADIATOR ASSEMBLY
4. REMOVE THROTTLE BODY COVER
5. REMOVE INTAKE AIR CONNECTOR ASSEMBLY
6. REMOVE DRIVE BELT, FAN, FLUID COUPLING AND FAN PULLEY
