Sequoia 2WD V8-4.7L (2UZ-FE) (2003)
Power and Ground Distribution
Relays and Modules - Power and Ground Distribution
Relay Box / Locations
Page 5082
Page 2

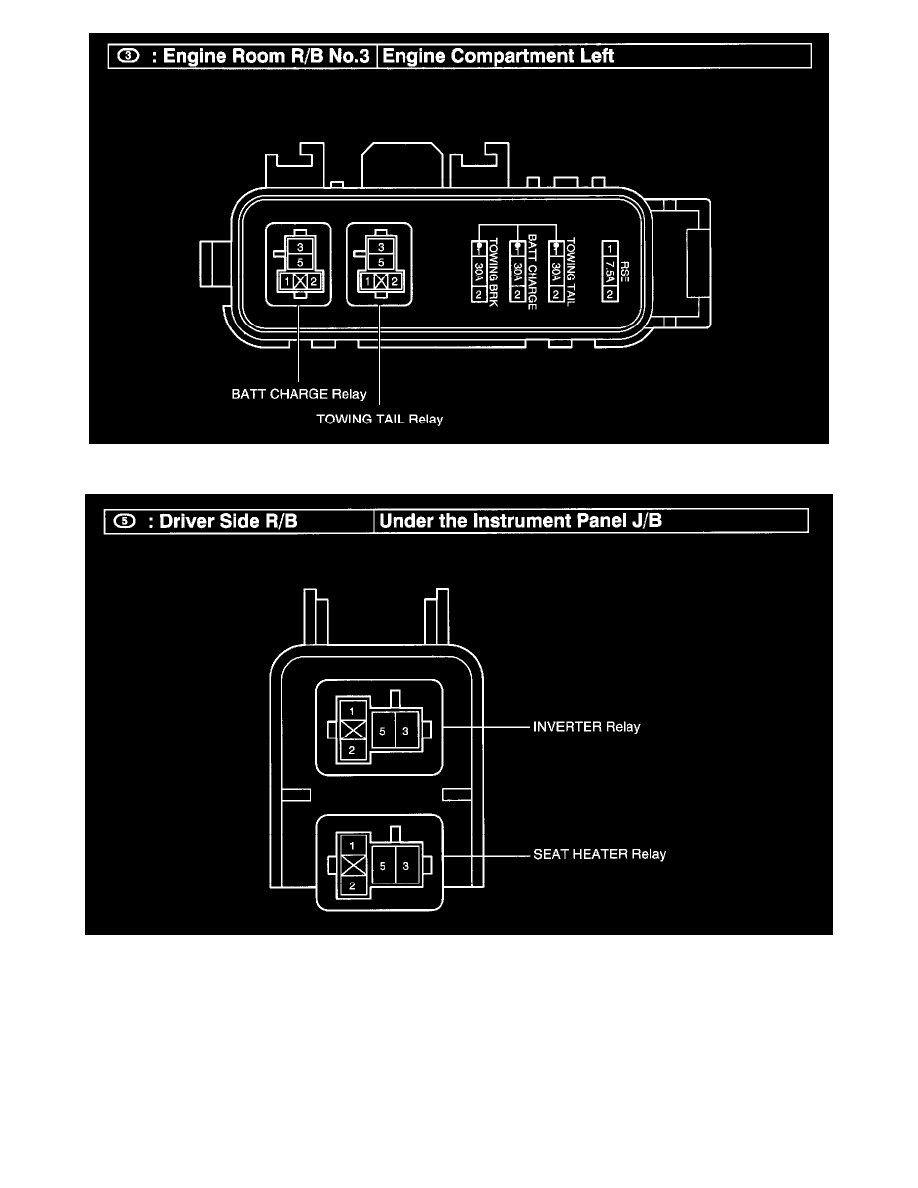

Engine Room R/B No.3 - Engine Compartment Left
Driver Side R/B - Under The Instrument Panel J/B
Power and Ground Distribution
Relays and Modules - Power and Ground Distribution
Relay Box / Locations
Page 5082
