Sequoia 2WD V8-4.7L (2UZ-FE) (2003)
/Page-748002.png)
Idle speed (Transmission in neutral): 700 ± 50 rpm
NOTE: Perform inspection under condition without electrical load.
d. After checking the above (a) to (c), perform the driving test and check that there is no sense of incongruity.
3. INSPECT THROTTLE CONTROL MOTOR
a. Disconnect the throttle control motor connector.

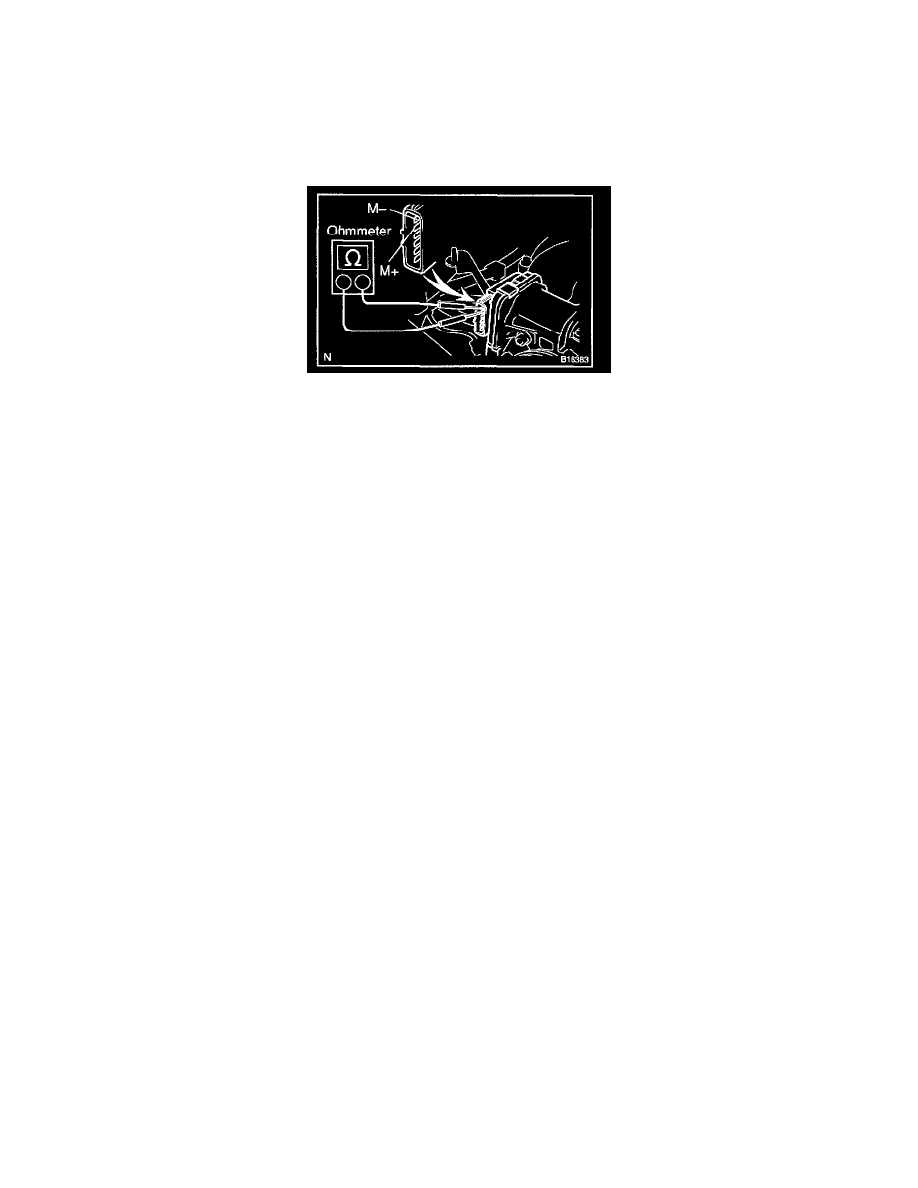

b. Using an ohmmeter, measure the motor resistance between terminal M+ and M-.
Motor resistance: 0.3 - 100 Ohm at 20 °C (68 °F)
If the resistance is not as specified, replace the throttle body assembly.
c. Reconnect the throttle control motor connector.
4. INSPECT THROTTLE POSITION SENSOR
If necessary, replace the throttle body assembly
5. REINSTALL THROTTLE BODY COVER
