Sequoia 2WD V8-4.7L (2UZ-FE) (2003)
If the backlash is not within the specified value, adjust it by either increasing or decreasing the thickness of washers on both sides by an equal
amount.
HINT: There should be no clearance between the plate washer and the case. Make sure that there is a ring gear backlash.

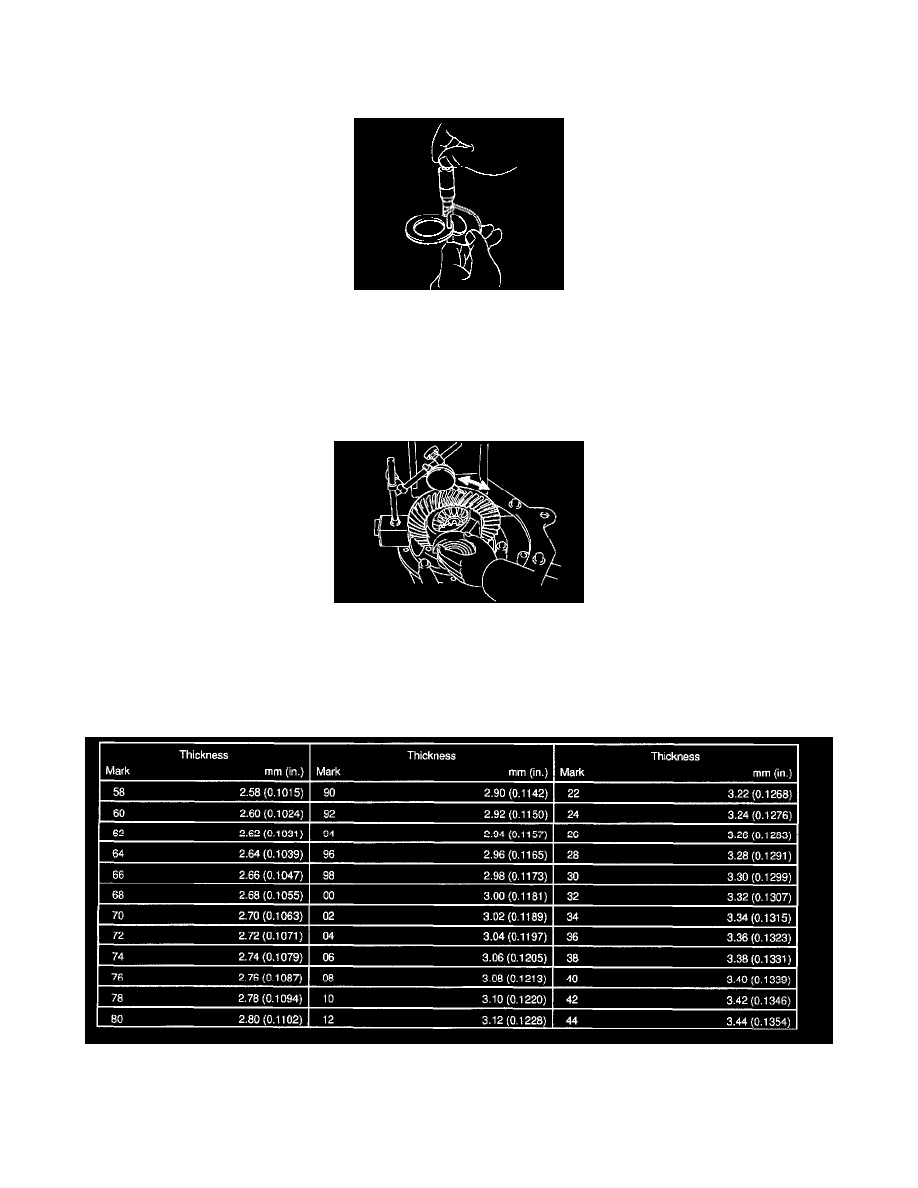

10. ADJUST SIDE BEARING PRELOAD
a. Remove the ring gear teeth side plate washer and using a micrometer, measure the thickness.
b. Using the backlash as a reference, install a new washer 0.05 - 0.20 mm (0.0019 - 0.0078 inch) thicker than the washer removed.
HINT: Select a washer which can be pressed in 2/3 of the way with your finger.
c. Using a plastic hammer, install the plate washer.
d. Recheck the ring gear backlash.
Backlash: 0.13 - 0.18 mm (0.0051 - 0.0071 inch)
If the backlash is not within the specified value, adjust it by either increasing or decreasing the thickness of washers on both sides by equal
amount.
HINT: The backlash will change by about 0.02 mm (0.0008 inch) corresponding to 0.03 mm (0.0012 inch) change in the plate washer.
