Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-1396003.png)
2. Read Check Result
HINT:
-
After repair and check, press "Code CLR" for more than 3 sec. to delete diagnosis memory.
-
After deleting diagnosis memory, press "Recheck" and make sure "OK" is displayed on the screen.

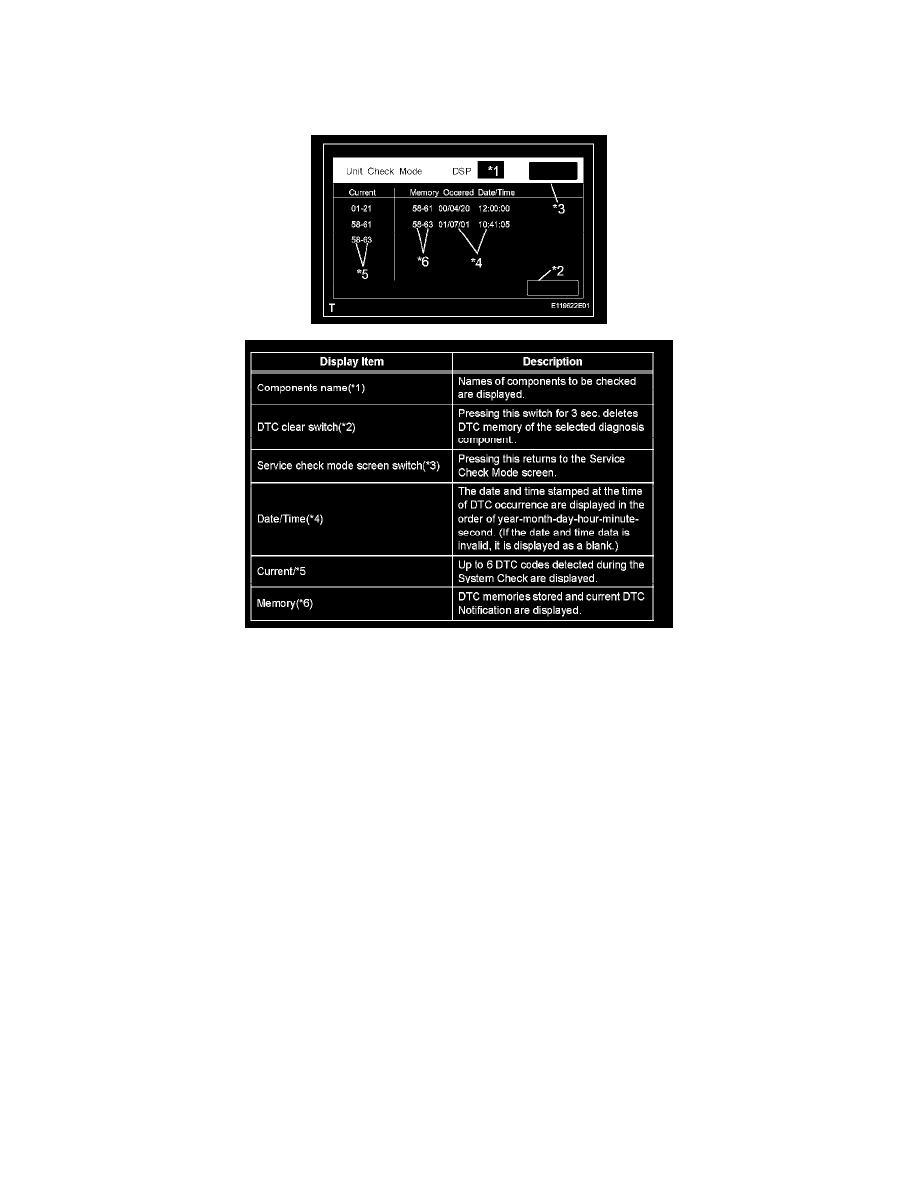

3. "EXCH", "CHEK" and "Old" can be used as switches to activate "Unit Check Mode" for detail information. Check troubled parts of the
components in these modes by referring to the DTC code list.
HINT:
-
Detecting Unit DTC activates the Unit Check Mode on the screen.
-
In the Unit Check Mode, DTC which is identified as "EHCK" in the Service Check is displayed as classified into Current DTC and
Past DTC.
