Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-978001.png)
Vacuum Brake Booster: Service and Repair
BRAKE BOOSTER

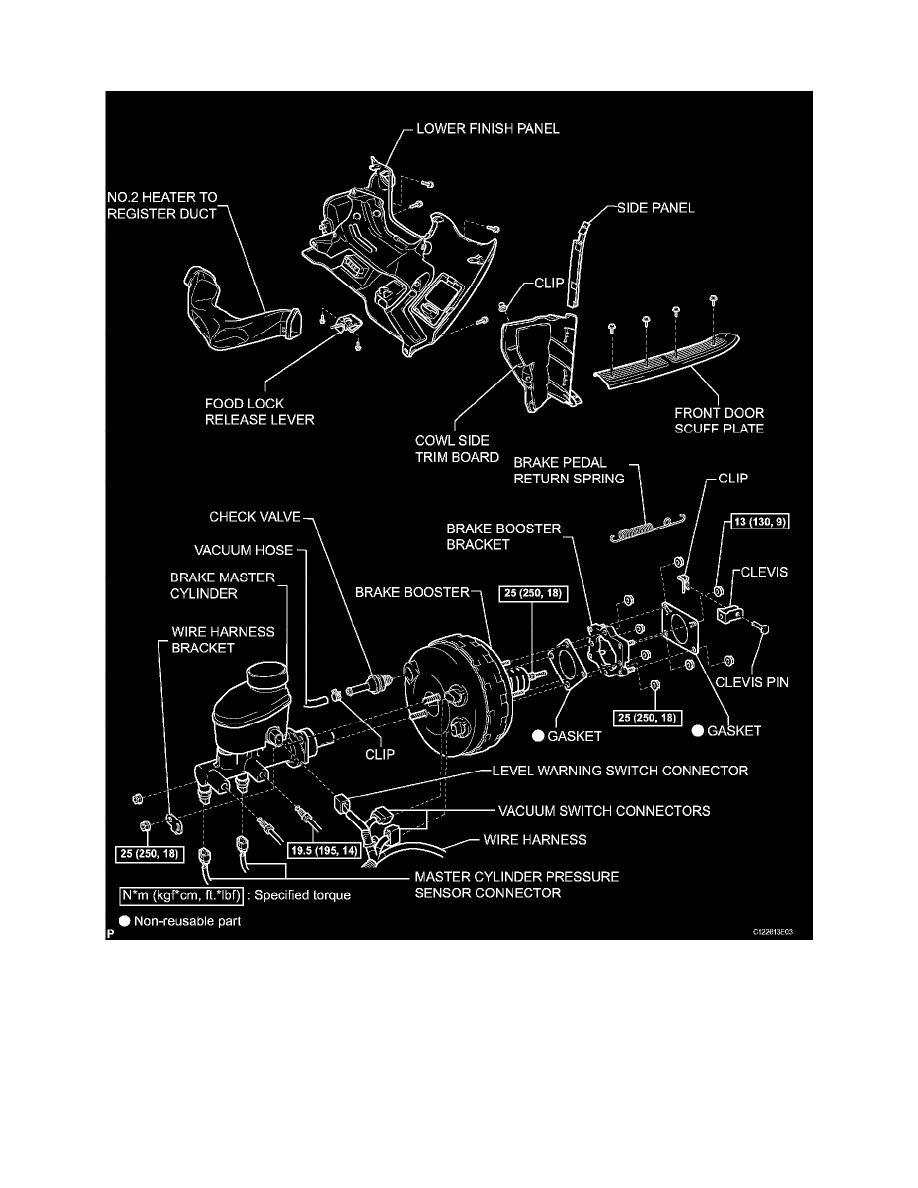

Brake Booster Components
REMOVAL
1. REMOVE BRAKE MASTER CYLINDER
2. DISCONNECT VACUUM HOSE
3. DISCONNECT VACUUM SWITCH CONNECTORS
4. REMOVE FRONT DOOR SCUFF PLATE LH
5. REMOVE COWL SIDE TRIM BOARD LH
6. REMOVE INSTRUMENT SIDE PANEL LH
7. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER LH
8. REMOVE NO.2 HEATER TO REGISTER DUCT
