Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-603005.png)

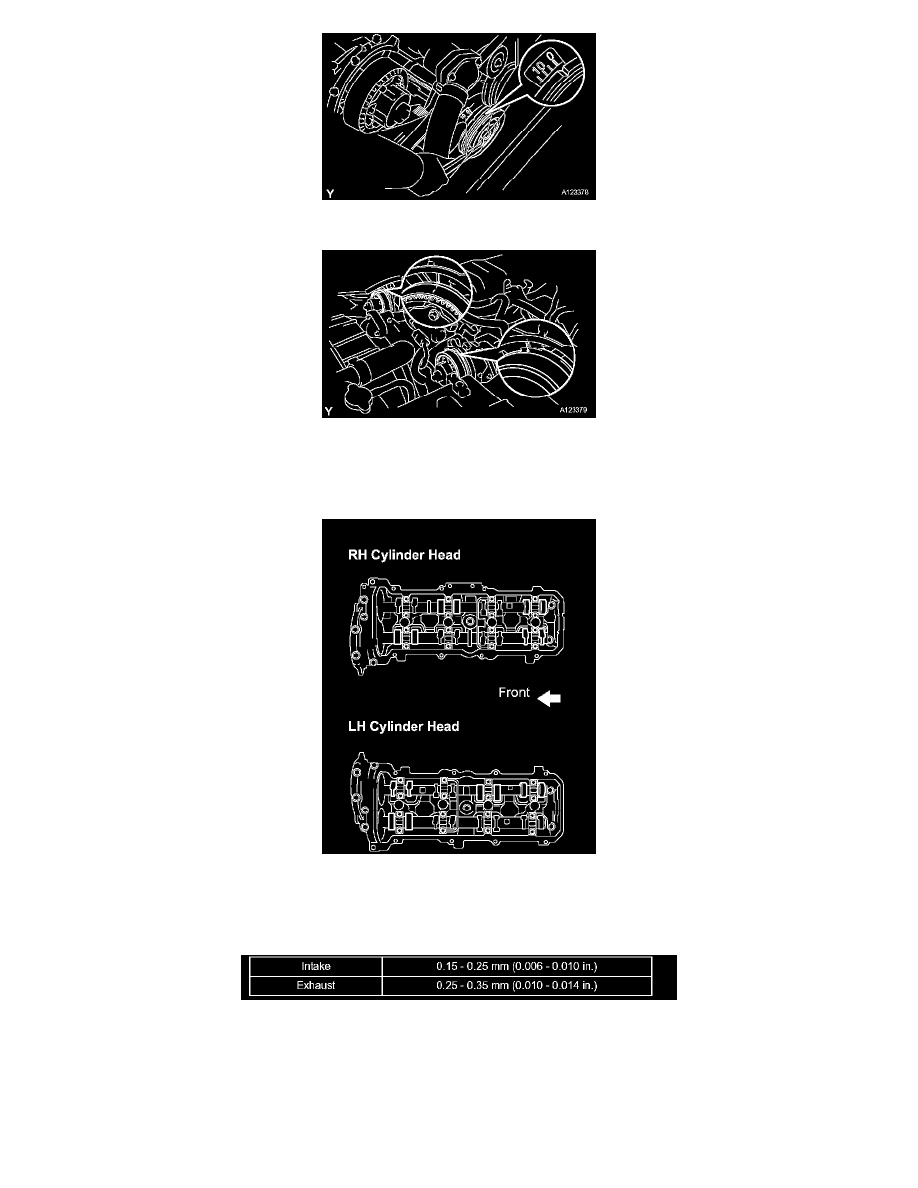

a) Turn the crankshaft pulley, and align its groove with timing mark "0" of the No. 1 timing belt cover.
b) Check that the timing marks of the camshaft timing pulleys and timing belt rear plates are aligned. If not, turn the crankshaft 1 revolution (360
°) and align the mark as above.
10. INSPECT VALVE CLEARANCE
a) Check only the valves indicated.
^
Using a feeler gauge, measure the clearance between the valve lifter and camshaft.
^
Record the out-of-specification valve clearance measurements. They will be used later to determine the required replacement adjusting
shim.
Valve Clearance (Cold)
b) Turn the crankshaft 1 revolution (360°) and align the mark as above. (See procedure in step 8).
