Sequoia 4WD V8-4.7L (2UZ-FE) (2006)

Page 1
background image

Hood Sensor/Switch (For Alarm): Testing and Inspection
Engine Hood Courtesy Switch

ENGINE HOOD COURTESY SWITCH

INSPECTION

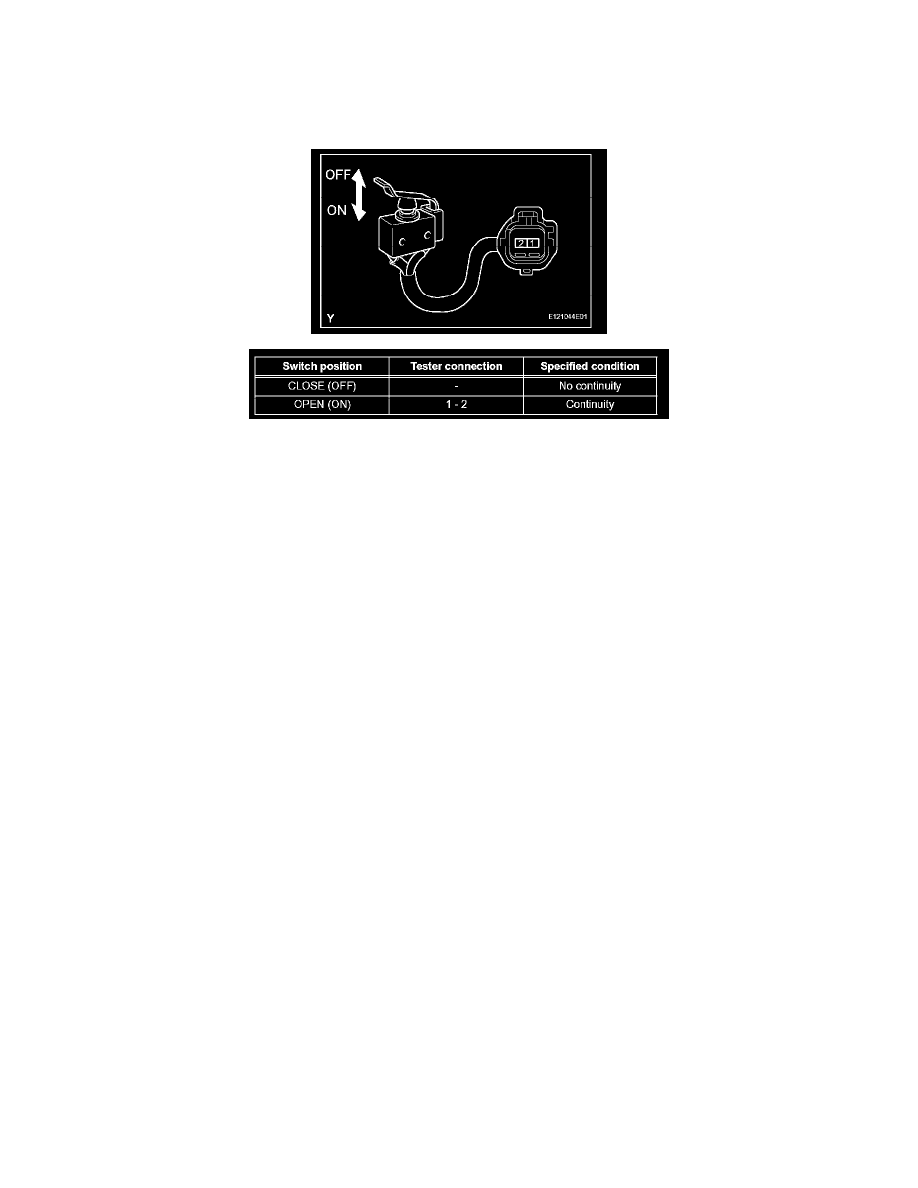

1. INSPECT ENGINE HOOD COURTESY SWITCH

If continuity is not as specified, replace the switch.
