Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
/Page-155001.png)
Door Switch: Testing and Inspection
Front Door Courtesy Switch
INSPECTION

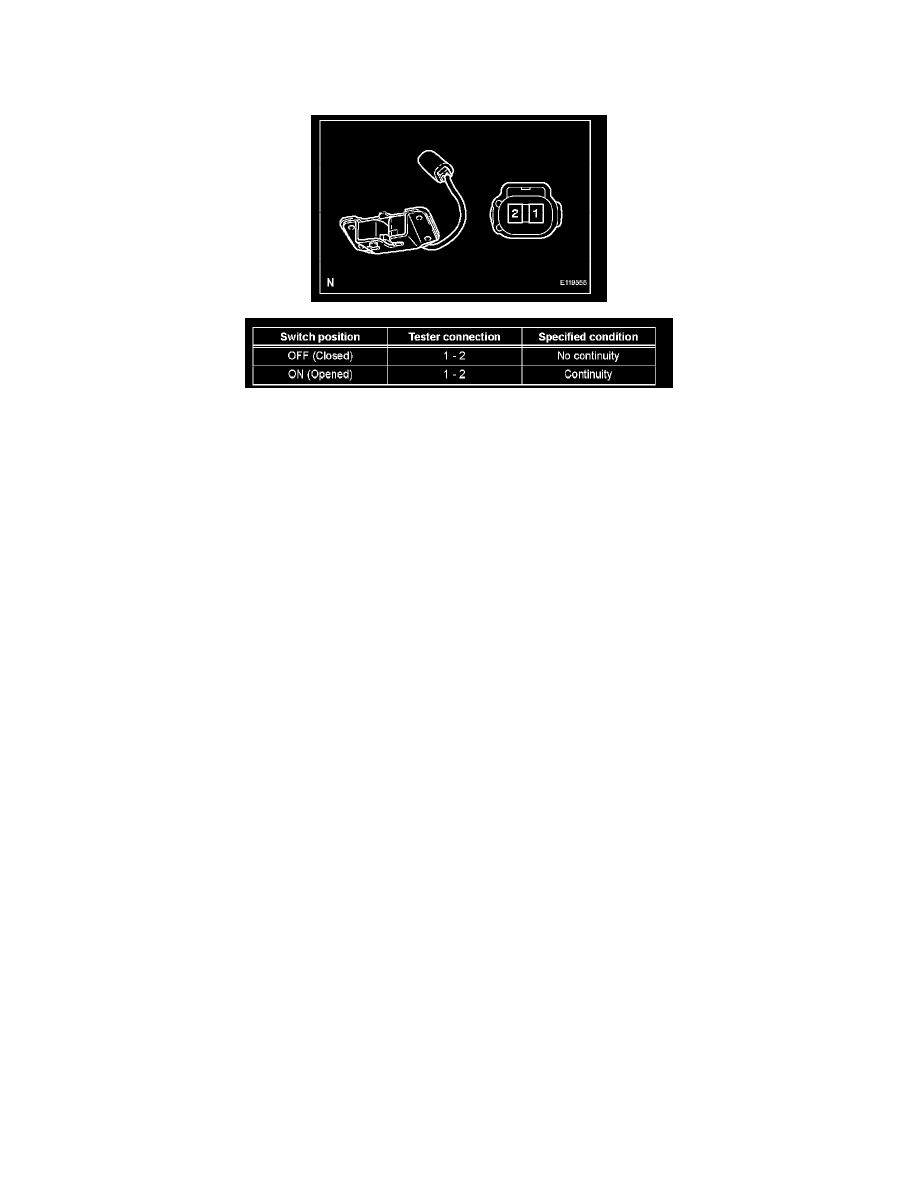

1. INSPECT FRONT DOOR COURTESY LIGHT SWITCH
a. Check that continuity exists between terminals and the switch body with the switch ON (switch pin released: opened door).
b. Check that no continuity exists between terminals and the switch body with the switch OFF (switch pin pushed in: closed door).
If continuity is not as specified, replace the switch.
