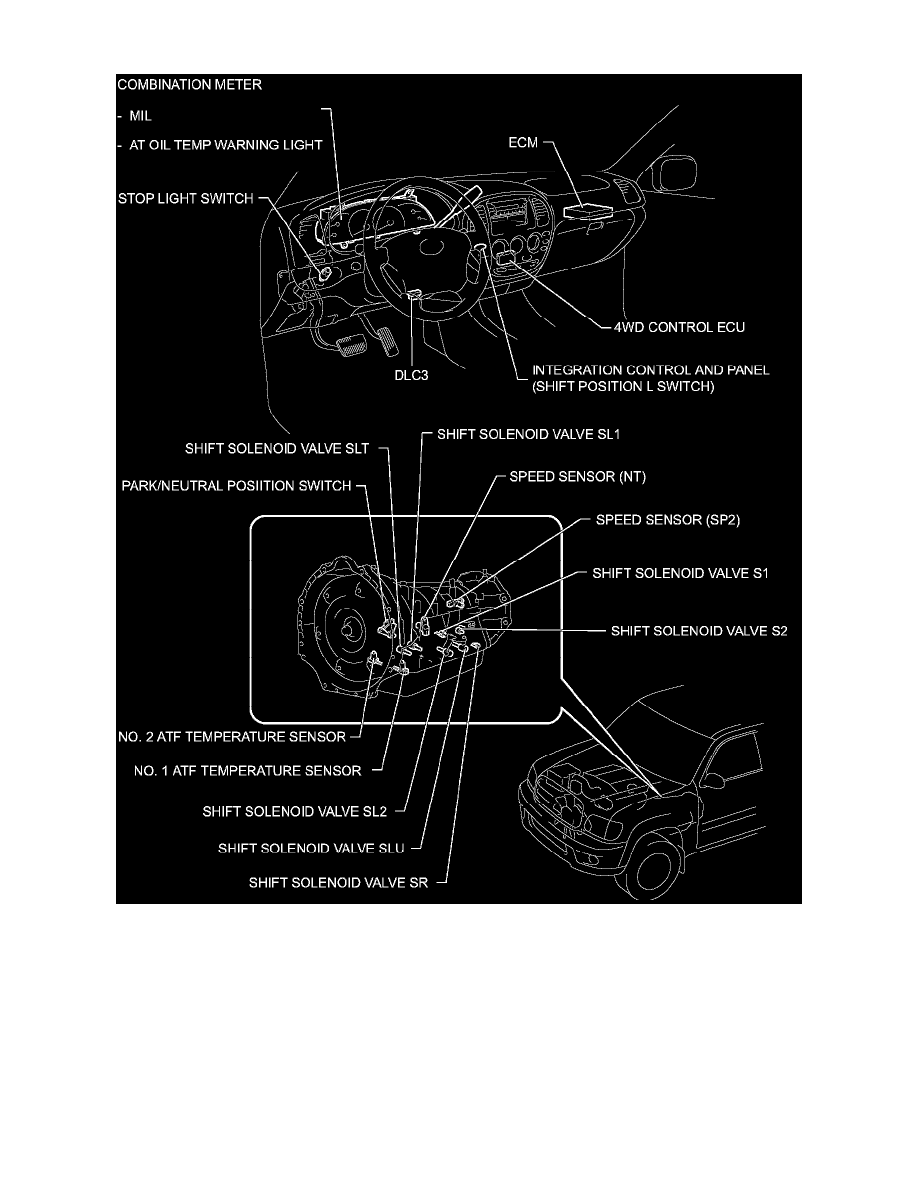

Transmission Speed Sensor Location - Sequoia 4WD V8-47L (2UZ-FE) (2006)
Transmission Speed Sensor: Service and Repair

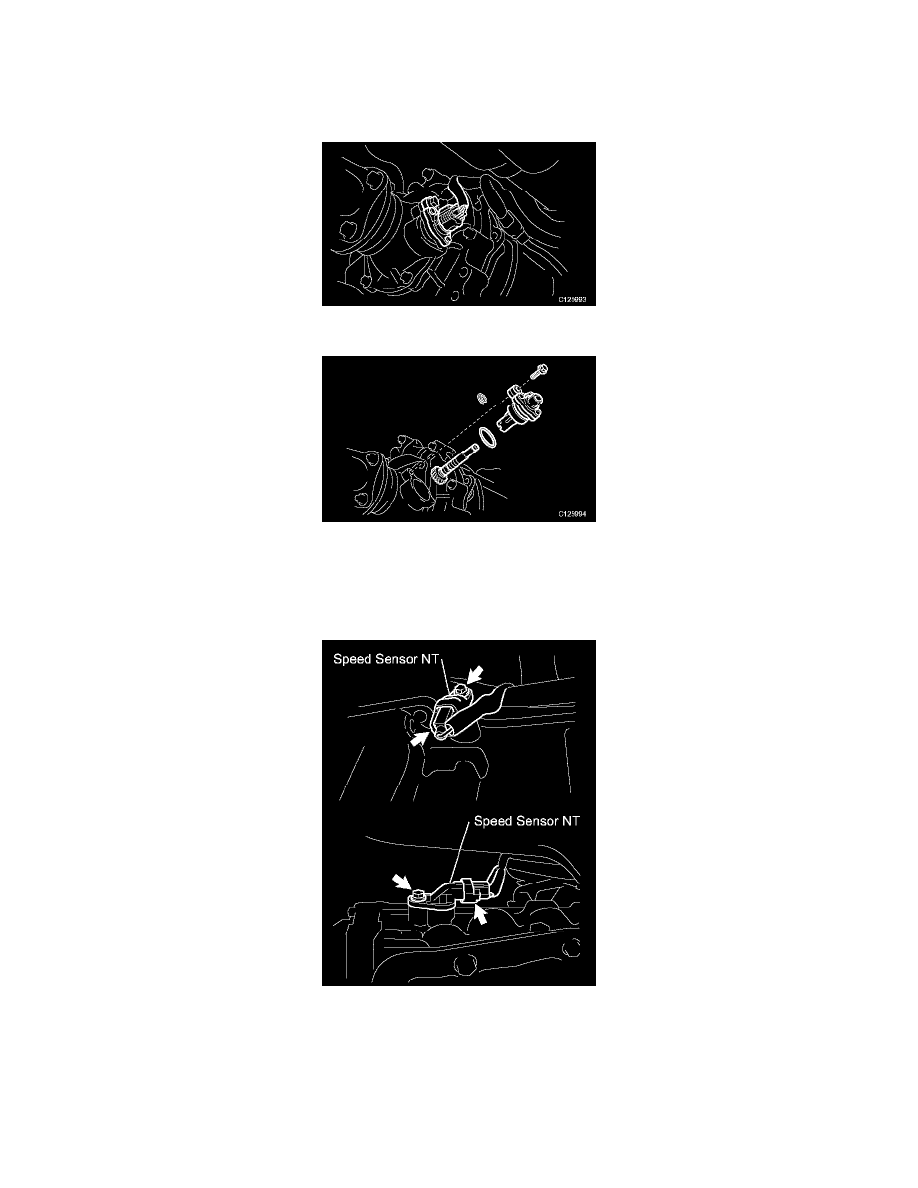

SPEED SENSOR
REMOVAL
1. REMOVE SPEEDOMETER SENSOR
a. Disconnect the sensor connector.
b. Remove the bolt and the sensor.
c. Remove the clip and the driven gear from the sensor.
d. Remove the O-ring from the sensor.
2. REMOVE TRANSMISSION REVOLUTION SENSOR NT AND SP2
a. Disconnect the sensor connectors.
b. Remove the 2 bolts, revolution sensor SP2 and NT
