Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
Alternator: Testing and Inspection
INSPECTION
1. INSPECT ROTOR

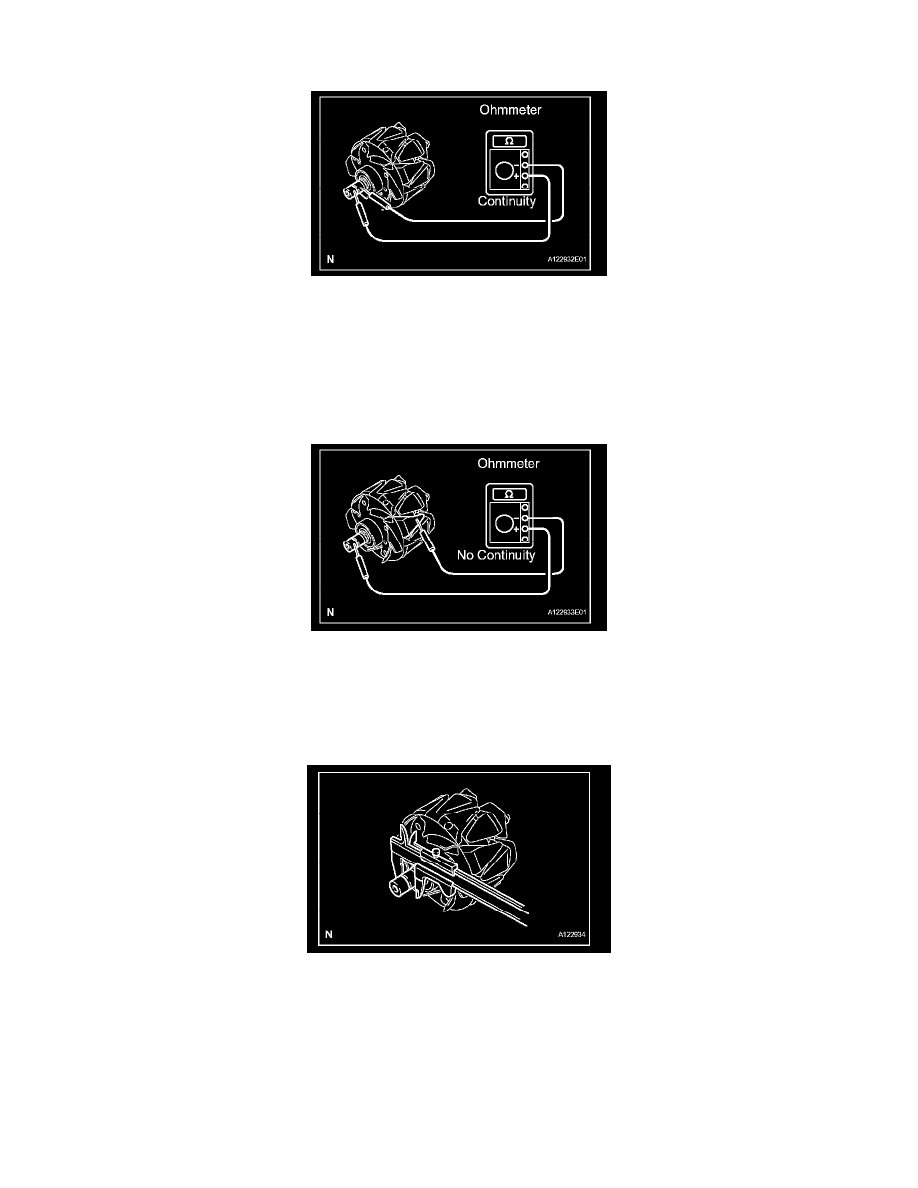

a. Check the rotor for open circuit.
1. Using an ohmmeter, check that there is continuity between the slip rings.
Standard resistance: 1.5 to 1.9 Ohms at 20 degrees C (68 degrees F)
If there is no continuity, replace the rotor.
b. Check the rotor for ground.
1. Using an ohmmeter, check that there is no continuity between the slip ring and rotor.
If there is continuity, replace the rotor.
c. Check that the slip rings are not rough or scored. If rough or scored, replace the rotor.
d. Using vernier calipers, measure the slip ring diameter.
Standard diameter: 14.2 to 14.4 mm (0.559 to 0.567 in.)
Minimum diameter: 14.0 mm (0.551 in.)
If the diameter is less than the minimum, replace the rotor.
