T100 Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E) (1993)

Page 18
background image

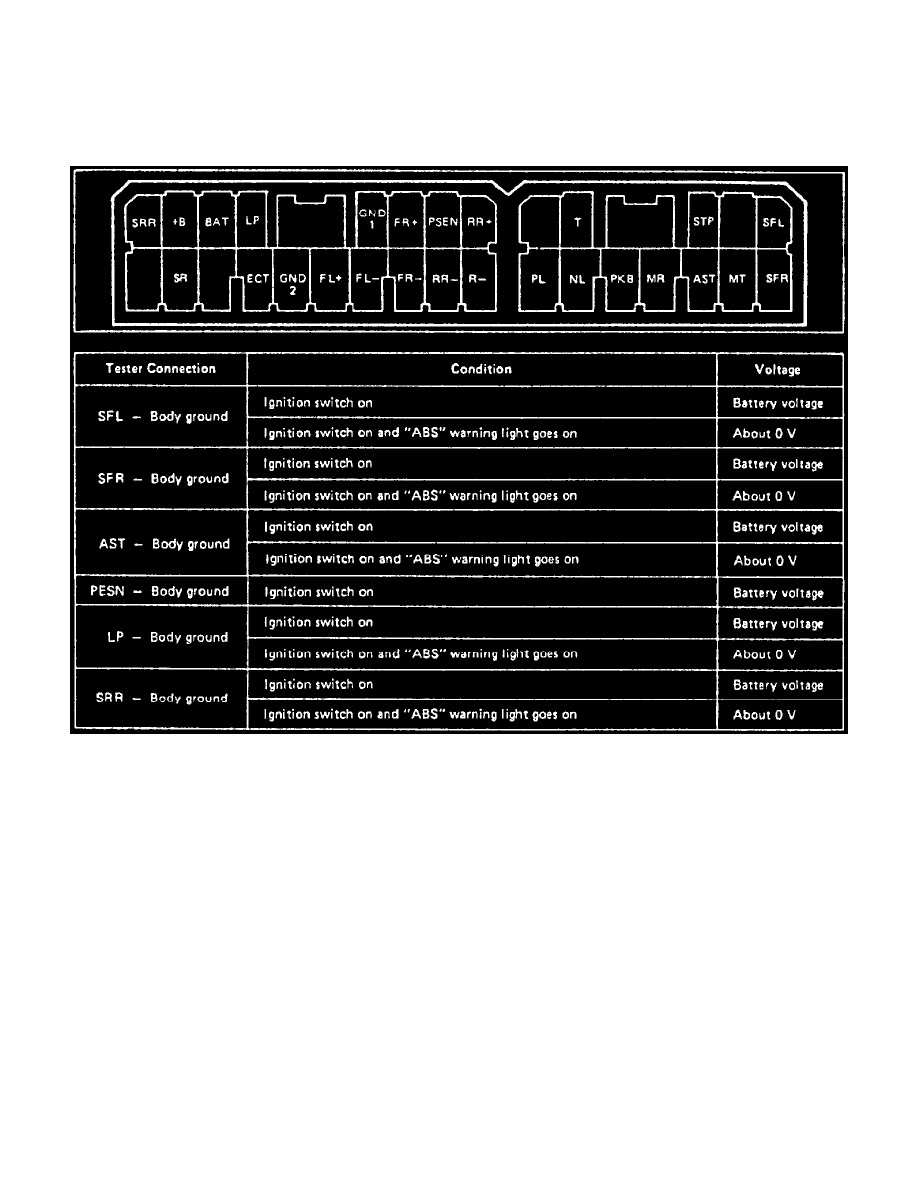

Fig. 191 Anti-Lock Brake System Circuit Test (W/Computer Connector Disconnected, Part 2 Of 2).

Anti-lock brake system circuit test (w/computer connector)
