Gear: Service and Repair

DRIVEN SPROCKET

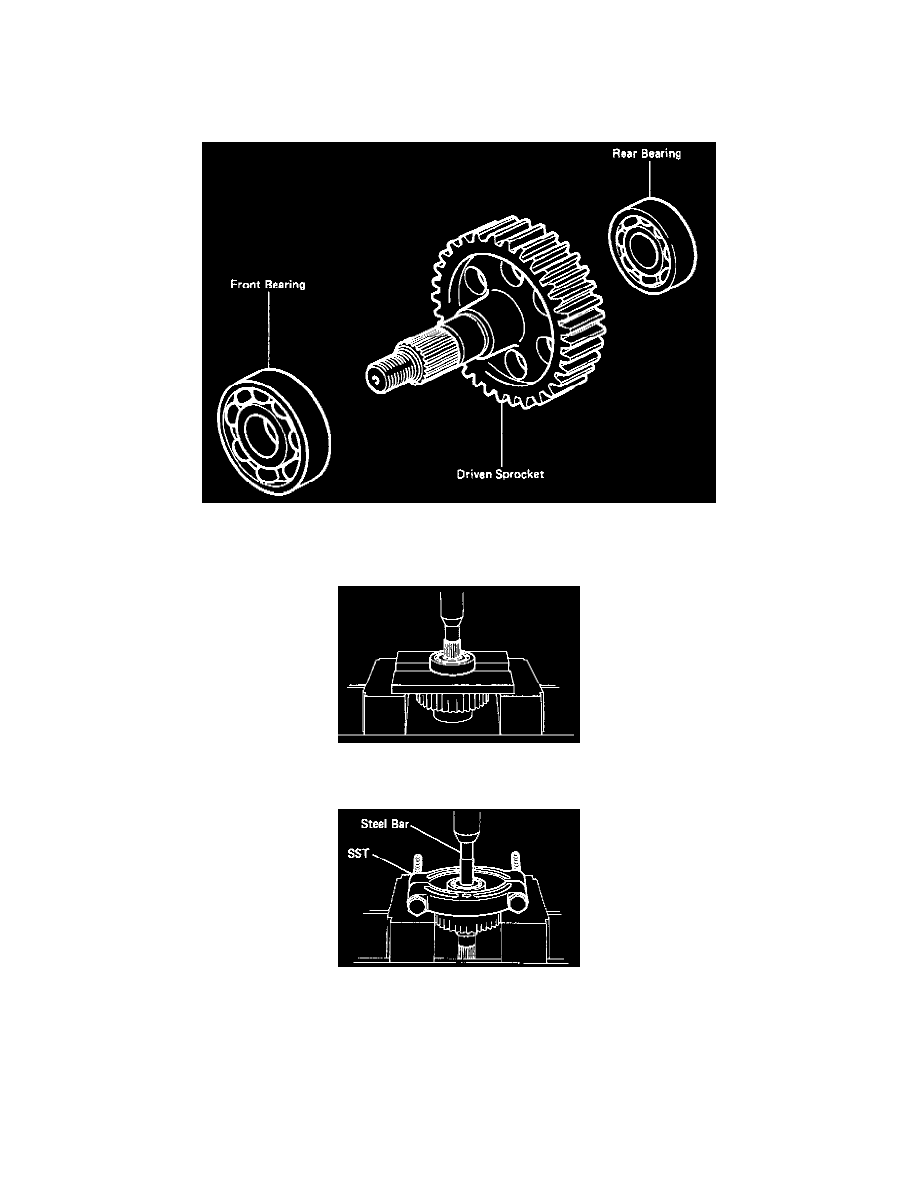

COMPONENTS

 ...............................................................................................................................................................................................................................................

DRIVEN SPROCKET DISASSEMBLY

1.

REMOVE FRONT BEARING
Using a press, remove the front bearing.

2.

REMOVE REAR BEARING
Using SST and a press, remove the rear bearing. SST 09950-00020

 ...............................................................................................................................................................................................................................................

DRIVEN SPROCKET ASSEMBLY
