Tundra 4WD V6-3.4L (5VZ-FE) (2004)
/Page-803002.png)
4. SELECT SPIDER BEARING
Select the appropriate bearing according to the existence of drill mark on the yoke.
5. INSTALL SPIDER BEARING
a. Apply MP grease to a new spider and bearings.
HINT: Be careful not to apply too much grease.

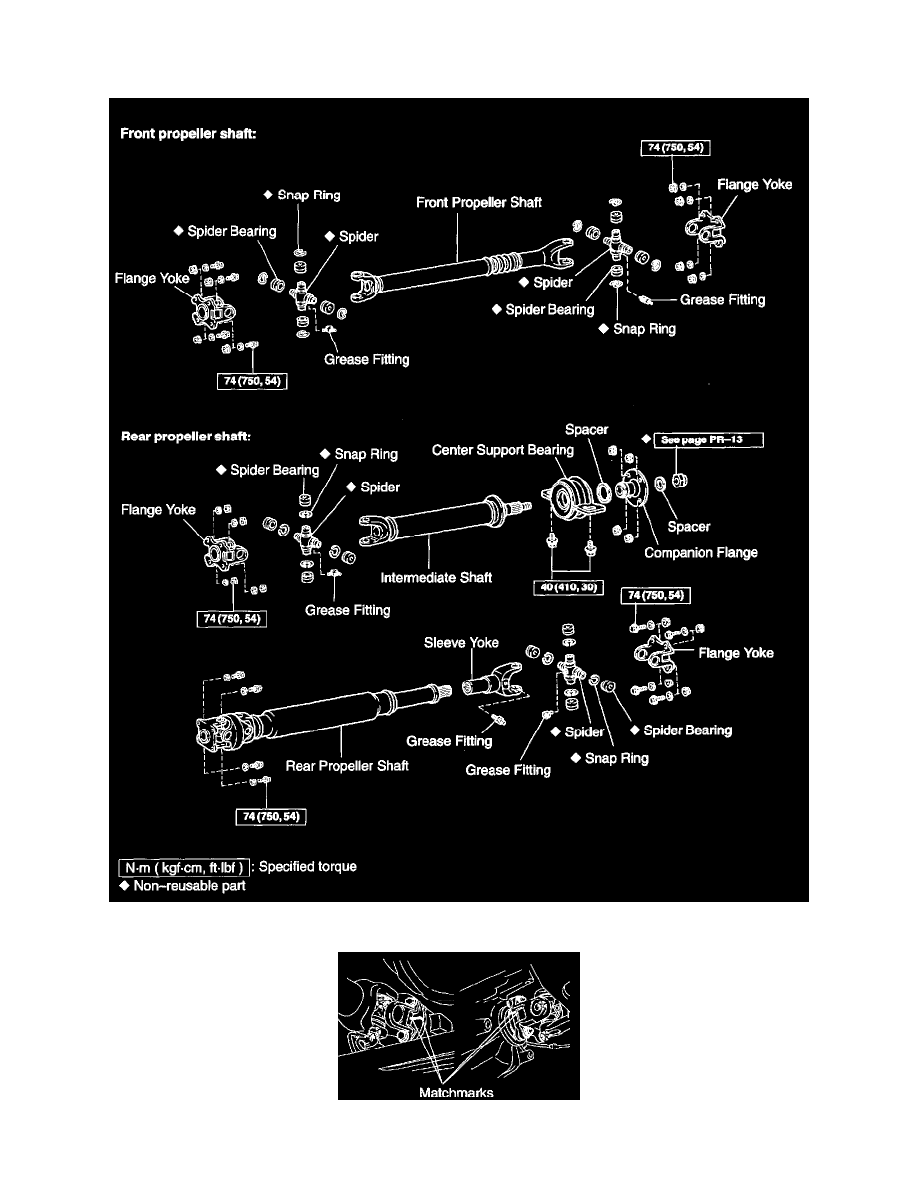

b. Align the matchmarks on the yoke and shaft.
c. Fit the spider into the yoke.
d. Using SST, install the bearing on the spider.
SST 09332-25010
e. Using SST, adjust both bearings so that the snap ring grooves are at maximum and equal in width.
