Tundra 4WD V8-4.6L (1UR-FE) (2010)
/Page-661025.png)

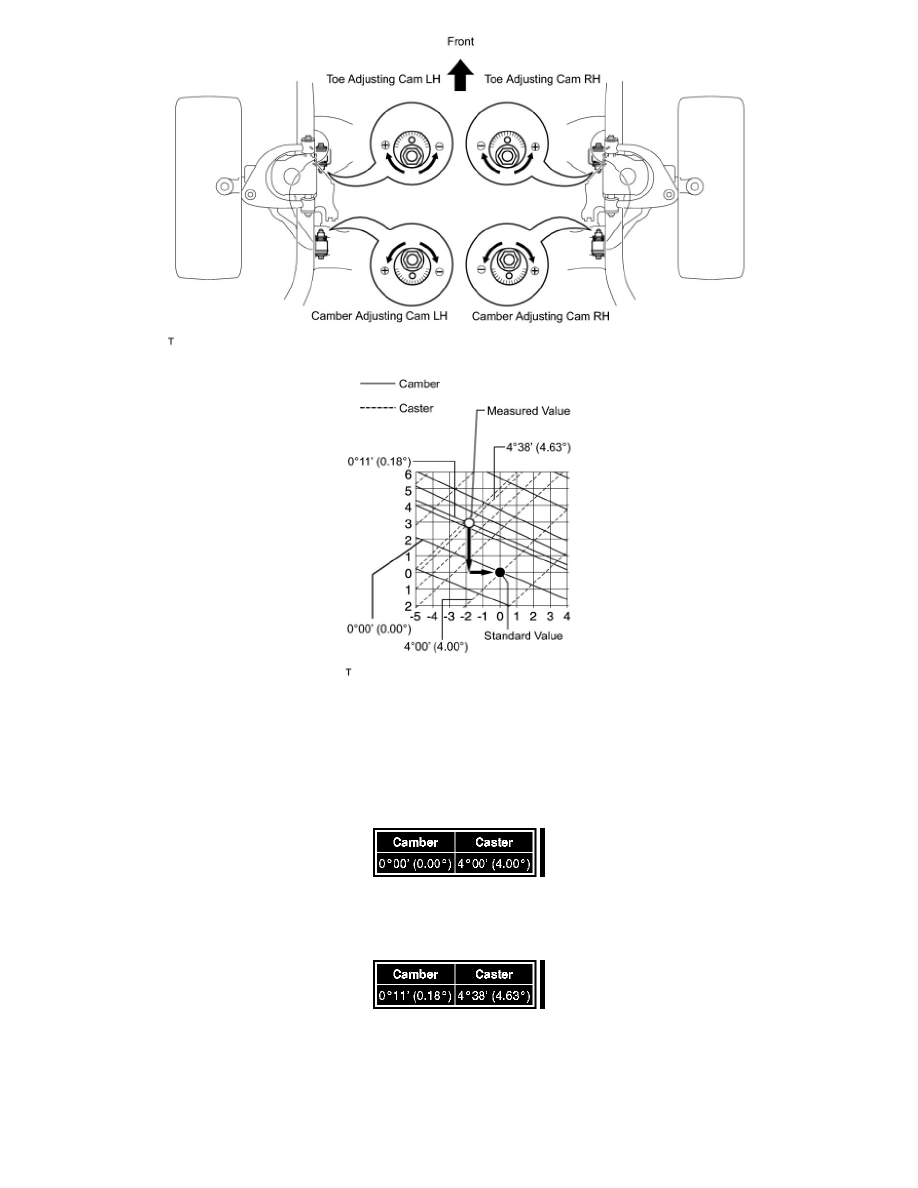

(c) Read the adjustment chart (example).
(1) Find the wheel alignment standard value applicable for the particular model.
(2) Mark the selected standard value on the adjustment chart.
Standard value (reference):
(3) Mark the alignment value measured when the vehicle is unloaded on the adjustment chart.
Measured value (reference):
(4) As shown in the chart, read the distance from the marked point to 0, and adjust the front and/ or rear adjusting cams accordingly.
Amount to turn adjusting cams (by gradation):
