Tundra 4WD V8-4.6L (1UR-FE) (2010)

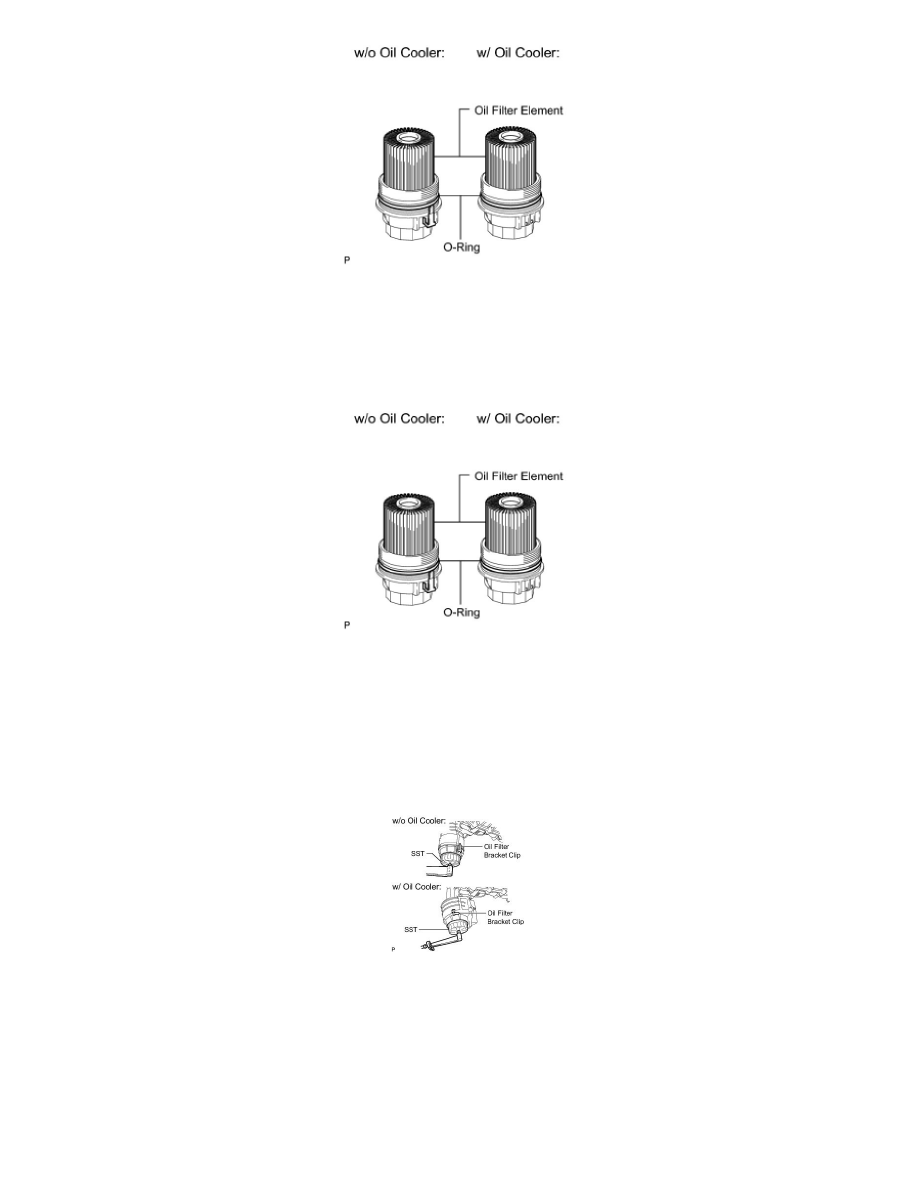

(f) Remove the oil filter element and O-ring from the oil filter cap.
NOTICE:
Be sure to remove the O-ring for the cap by hand, without using any tools, to prevent damage to the cap's O-ring groove.
4. INSTALL OIL FILTER ELEMENT
(a) Clean the inside of the oil filter cap, its threads and its O-ring groove.
(b) Apply a small amount of engine oil to a new O-ring and install it to the oil filter cap.
(c) Set a new oil filter element to the oil filter cap.
(d) Remove any dirt or foreign matter from the installation surface of the engine.
(e) Apply a small amount of engine oil to the O-ring again and temporarily install the oil filter cap.
(f) Using SST, tighten the oil filter cap.
SST : 09228-06501
Torque : 25 Nm (255 kgf-cm, 18 ft-lbf)
NOTICE:
*
When tightening the oil filter cap, do not remove the oil filter bracket clip.
*
Make sure that the oil filter is installed securely as shown in the illustration.
*
Be careful that the O-ring does not get caught between any surrounding parts.
