Venza FWD L4-2.7L (1AR-FE) (2009)
Radiator Cooling Fan Motor: Testing and Inspection
1AR-FE COOLING: COOLING FAN MOTOR: ON-VEHICLE INSPECTION
ON-VEHICLE INSPECTION
1. INSPECT COOLING FAN MOTOR

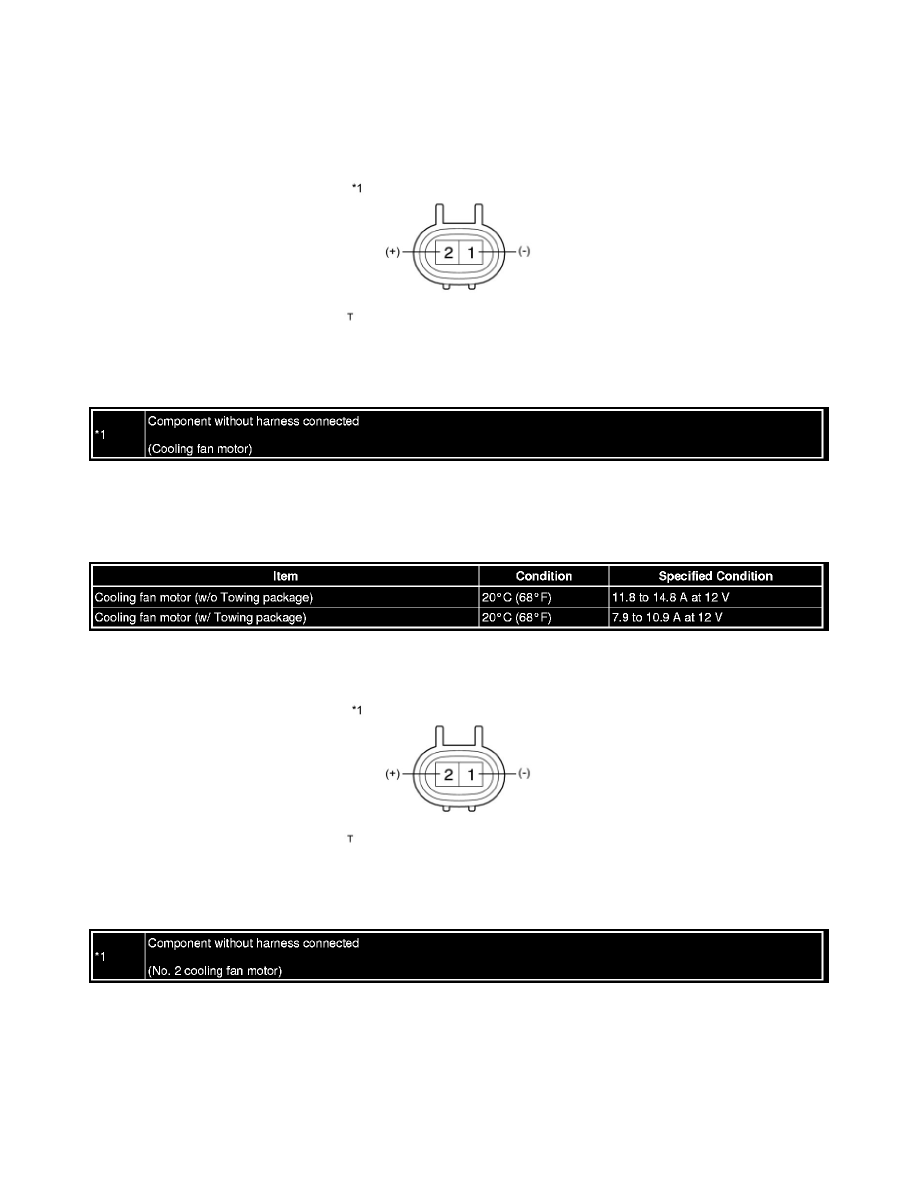

(a) Check that the motor operates smoothly when the battery is connected to the cooling fan motor connector.
Text in Illustration
If the motor does not operate smoothly, replace the cooling fan motor.
(b) Connect the pickup of a clamp-on ammeter over one of the 2 wires for the cooling fan motor.
(c) Measure the current while the motor is operating.
Standard Current:
If the result is not as specified, replace the cooling fan motor.
2. INSPECT NO. 2 COOLING FAN MOTOR
(a) Check that the motor operates smoothly when the battery is connected to the No. 2 cooling fan motor connector.
Text in Illustration
If the motor does not operate smoothly, replace the No. 2 cooling fan motor.
(b) Connect the pickup of a clamp-on ammeter over one of the 2 wires for the No. 2 cooling fan motor.
(c) Measure the current while the motor is operating.
Standard Current:
