Astra J
Transmission/Transaxle
Manual Transmission - F17-5 / Repair Instructions

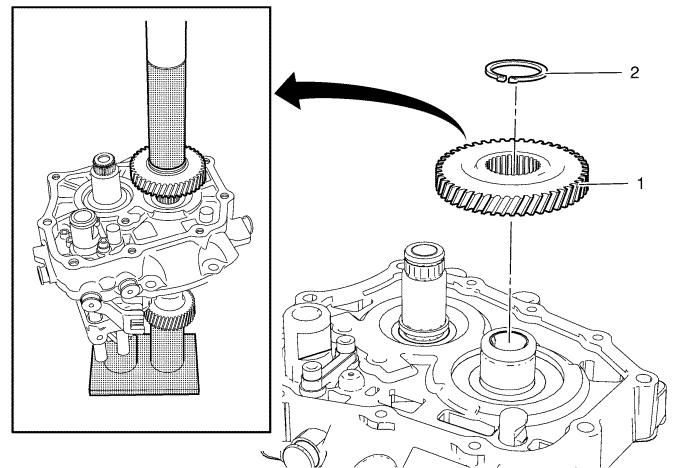

5th Gear Installation
5th Gear Installation
Callout
Component Name
1
5th Gear
Tip
Hydraulic press required.
Special Tools
•
CH-473
Installing Tube
•
DT-113-2-A
Holding Fixture Base
•
DT-552
Installer
•
DT-6337-A
Installer
For equivalent regional tools, refer to
Special Tools
.
2
5th Gear Retaining Ring
Procedure
Install a NEW retaining ring.
