Astra J
Transmission/Transaxle
Manual Transmission - F17-5 / Repair Instructions
5th Gear Removal

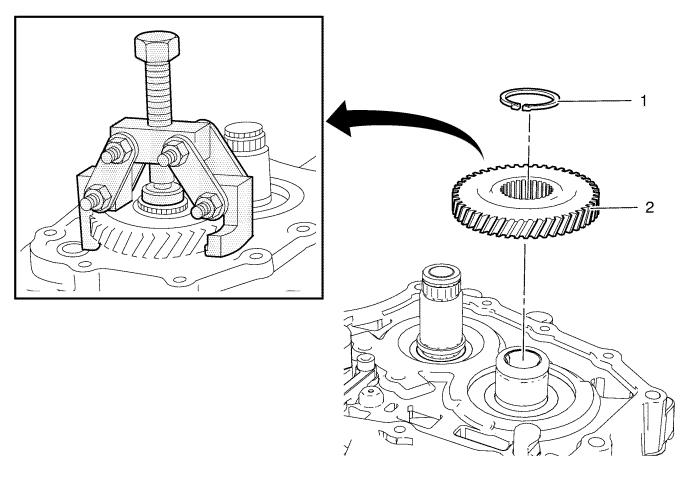

5th Gear Removal
Callout
Component Name
1
5th Gear Retainer Ring
2
5th Gear
Tip
Lay the plunger of the
DT-553-A
Puller between the shaft and the puller.
Special Tools
DT-553-A
Puller
For equivalent regional tools, refer to
Special Tools
.
Transmission/Transaxle
Manual Transmission - F17-5 / Repair Instructions
5th Gear Removal
