Main Shaft AssembleTable 1: 4th Gear Bearing InstallationTable 2: 4th Gear and 4th Gear Synchronizer Installation Table 3: 3rd and 4th Gear Synchronizer Hub Installation Table 4: 3rd and 4th Gear Thrust Washer Installation Table 5: 3rd and 4th Gear Synchronizer Hub Retaining Ring Installation Table 6: 3rd Gear Installation Table 7: 2nd Gear Bearing Installation Table 8: 1st and 2nd Gear Synchronizer Hub and 2nd Gear Installation Table 9: 1st and 2nd Gear Synchronizer Hub Retaining Ring Installation Table 10: 1st Gear Blocking Rings Installation Table 11: 1st Gear Installation 4th Gear Bearing Installation
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
4th Gear Bearing Installation
|
Callout |
Component Name |
|---|---|
1 |
4th Gear Bearing |
4th Gear and 4th Gear Synchronizer Installation
|
|
4th Gear and 4th Gear Synchronizer Installation
|
|
Callout |
Component Name |
|---|---|
1 |
4th Gear |
2 |
4th Gear Synchronizer |
3rd and 4th Gear Synchronizer Hub Installation
|
|
3rd and 4th Gear Thrust Washer Installation
|
|
3rd and 4th Gear Thrust Washer Installation
|
Callout |
Component Name |
|---|---|
1 |
3rd and 4th Synchronizer Sleeve |
2 |
3rd and 4th Synchronizer Insert |
3 |
3rd and 4th Gear Trust Washer |

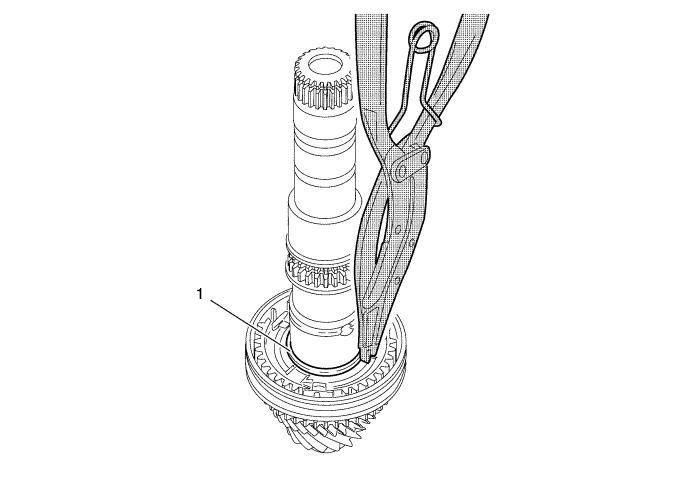

3rd and 4th Gear Synchronizer Hub Retaining Ring
Installation
|
|
3rd and 4th Gear Synchronizer Hub Retaining Ring
Installation
|
|
Callout |
Component Name |
|---|---|
1 |
3rd and 4th Gear Synchronizer Hub Retaining Special ToolsGE-8059 Snap Ring Pliers |

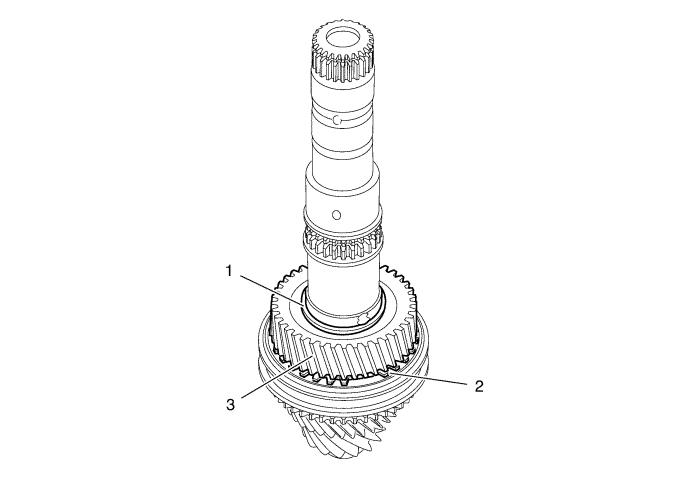

3rd Gear Installation
|
|
3rd Gear Installation
|
|
Callout |
Component Name |
|---|---|
1 |
3rd Gear Bearing |
2 |
3rd Gear Synchronizer |
3 |
3rd Gear |

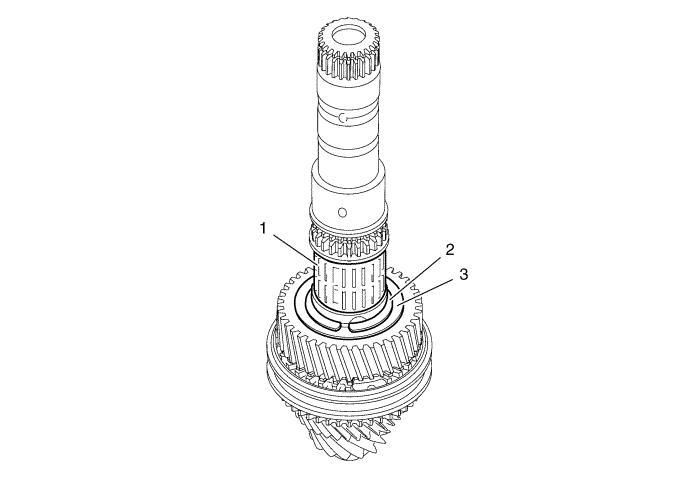

2nd Gear Bearing Installation
|
|
2nd Gear Bearing Installation
|
|
Callout |
Component Name |
|---|---|
1 |
2nd Gear Bearing |
2 |
2nd and 3rd Gear Thrust Washer |
3 |
2nd and 3rd Gear Synchronizer Hub Retaining Ring |

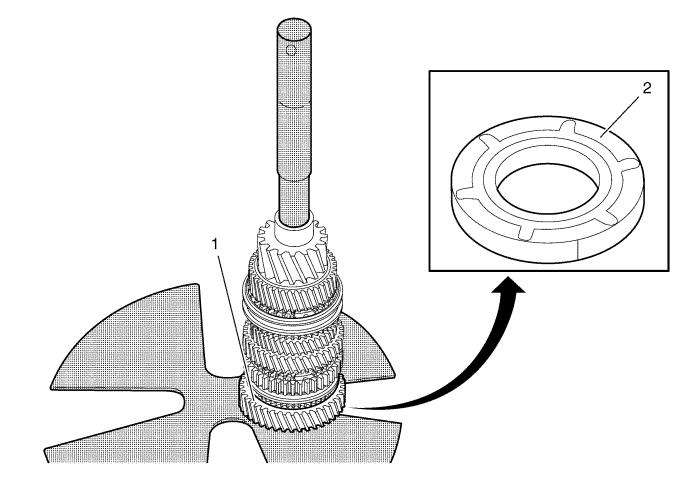

1st and 2nd Gear Synchronizer Hub and 2nd Gear Installation
|
|
1st and 2nd Gear Synchronizer Hub and 2nd Gear Installation
|
||||||||||||||
|
Callout |
Component Name |
||||
|---|---|---|---|---|---|
Preliminary ProcedureA hydraulic press is required to complete procedure. Prepare hydraulic press for procedure. |
|||||
1 |
2nd Gear |
||||
2 |
2nd Gear Synchronizer |
||||
3 |
1st and 2nd Gear Synchronizer Hub Special Tools
|
||||
| • | CH-500-A Installer |
| • | DT-514 Installer |

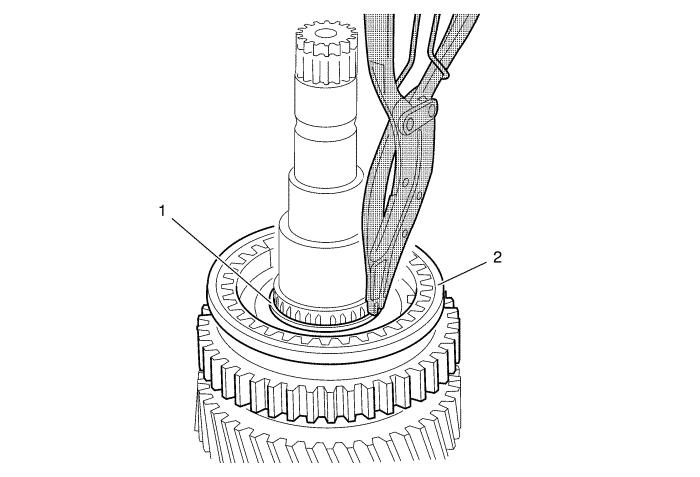

1st and 2nd Gear Synchronizer Hub Retaining Ring
Installation
|
|
1st and 2nd Gear Synchronizer Hub Retaining Ring
Installation
|
Callout |
Component Name |
|---|---|
1 |
1st and 2nd Gear Synchronizer Hub Retaining Ring Special ToolsGE-8059 Snap Ring Pliers |
2 |
1st and 2nd Gear Synchronizer Sleeve |

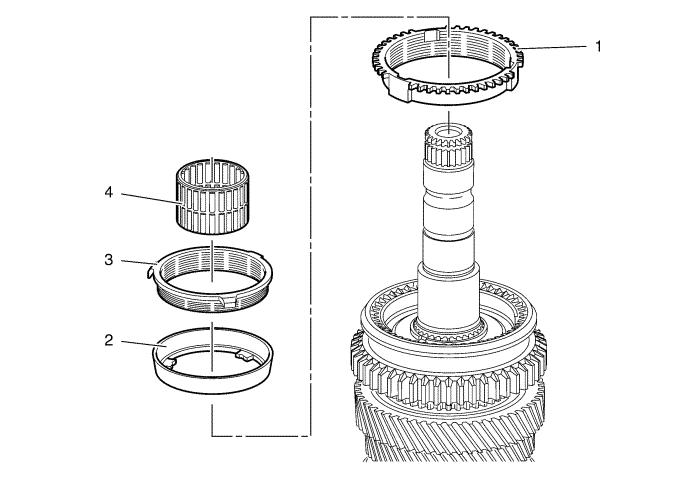

1st Gear Blocking Rings Installation
|
|
1st Gear Blocking Rings Installation
|
|
Callout |
Component Name |
|---|---|
1 |
1st Gear Outer Blocking Ring |
2 |
1st Gear Intermediate Blocking Ring |
3 |
1st Gear Inner Blocking Ring |
4 |
1st Gear Bearing |
1st Gear Installation
|
|
1st Gear Installation
|
||||||||||||
|
Callout |
Component Name |
||||
|---|---|---|---|---|---|

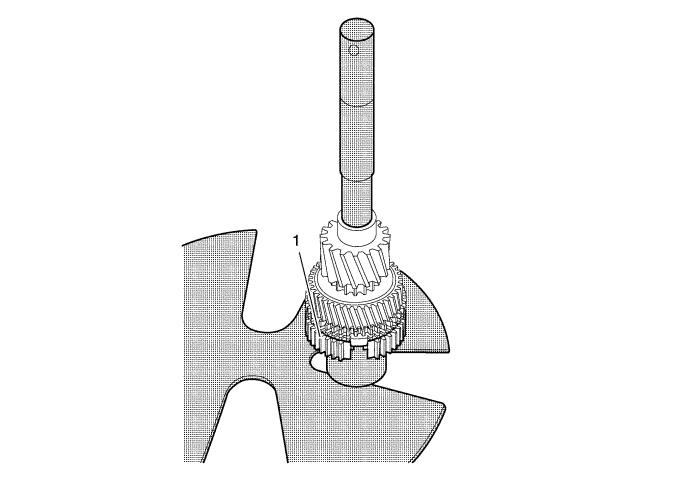

Preliminary ProcedureA hydraulic press is required to complete procedure. Prepare hydraulic press for procedure. |
|||||
1 |
1st Gear |
||||
2 |
1st Gear Thrust Washer Special Tools
|
||||
| • | DT-307-B Remover Plate |
| • | DT-736 Clutch Arbor |
