Illustration of engine management system
Note: Assignment of
work operations numbers of the engine managment system
Note: Torque Guide
Values
Note: Programming
with TECH 2
Note: Program
volatile memories
|
| 1. |
J491050 - Pressure sensor, pressure
accumulator |
| 2. |
J741100 -- Charge pressure sensor |
| 3. |
J491020 - Fuel pressure regulator (high
pressure) |
| 4. |
J740500 -- Coolant temperature sensor |
| 5. |
J794400 -- Crankshaft pulse generator |
| 6. |
J795200 -- Camshaft sensor |
|
|

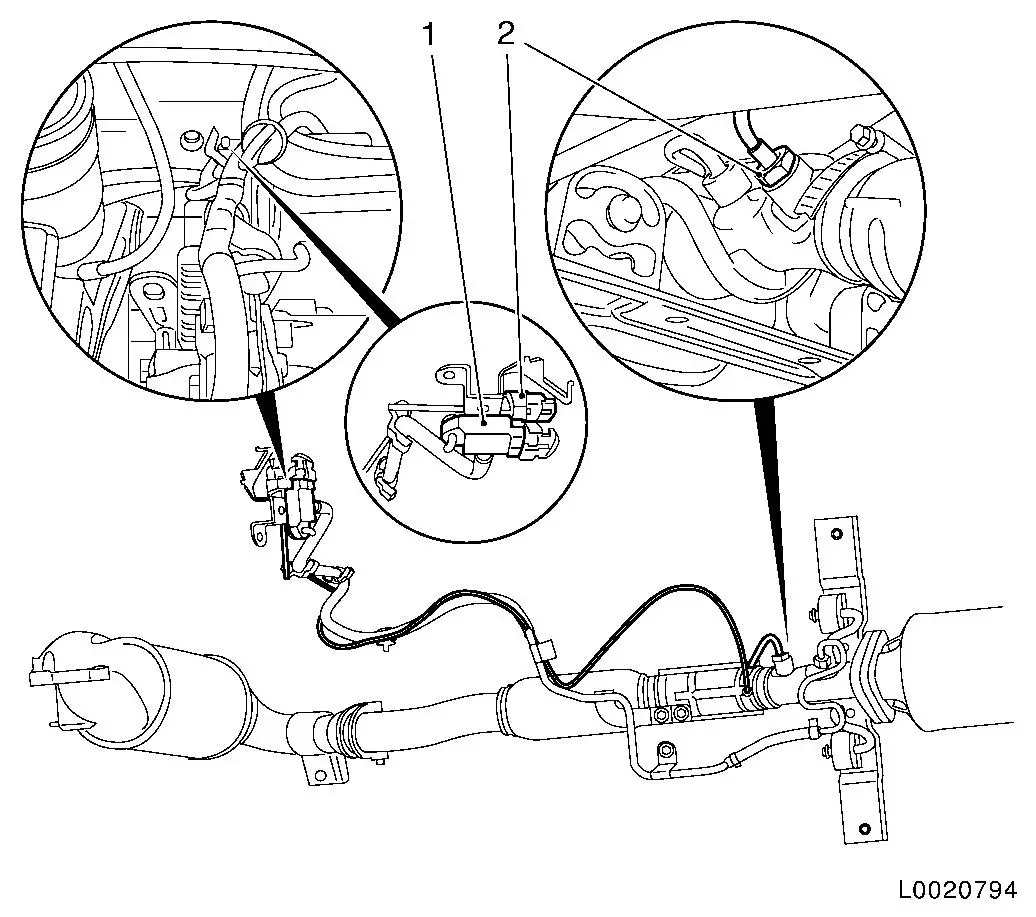

| 1. |
J502910 -- Differential pressure sensor |
| 2. |
J502920 -- Particulate filter temperature
sensor |
|
|

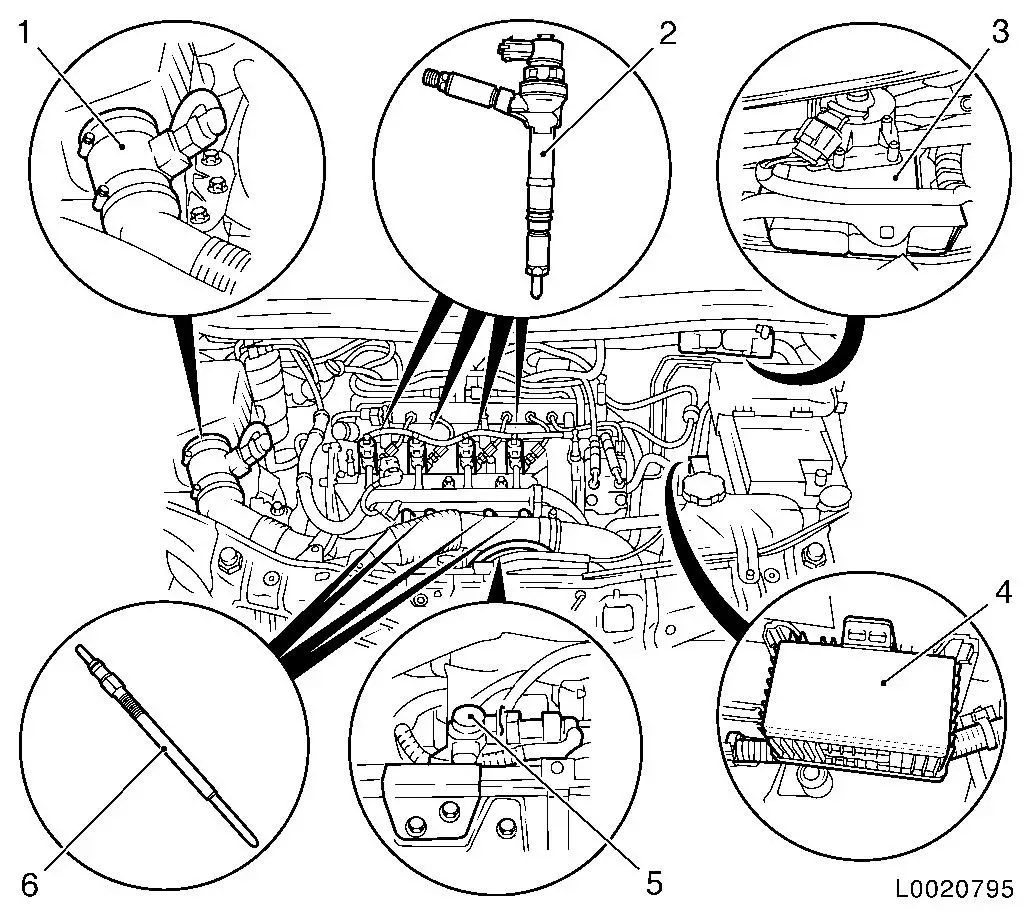

| 1. |
J741000 -- Air-flow sensor |
| 2. |
J491070 -- Injector  |
| 3. |
J745500 -- Engine control unit |
| 4. |
J479700 -- Pre-heater system control unit |
| 5. |
J471000 - Change-over valve charge pressure
regulator |
| 6. |
J486000 -- Sheathed glow plug |
|
|
